Home >> Volkswagen >> 2008 >> Rabbit (1K1) L5-2.5L (CBUA) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications >> Specifications - Clutch

Specifications - Clutch

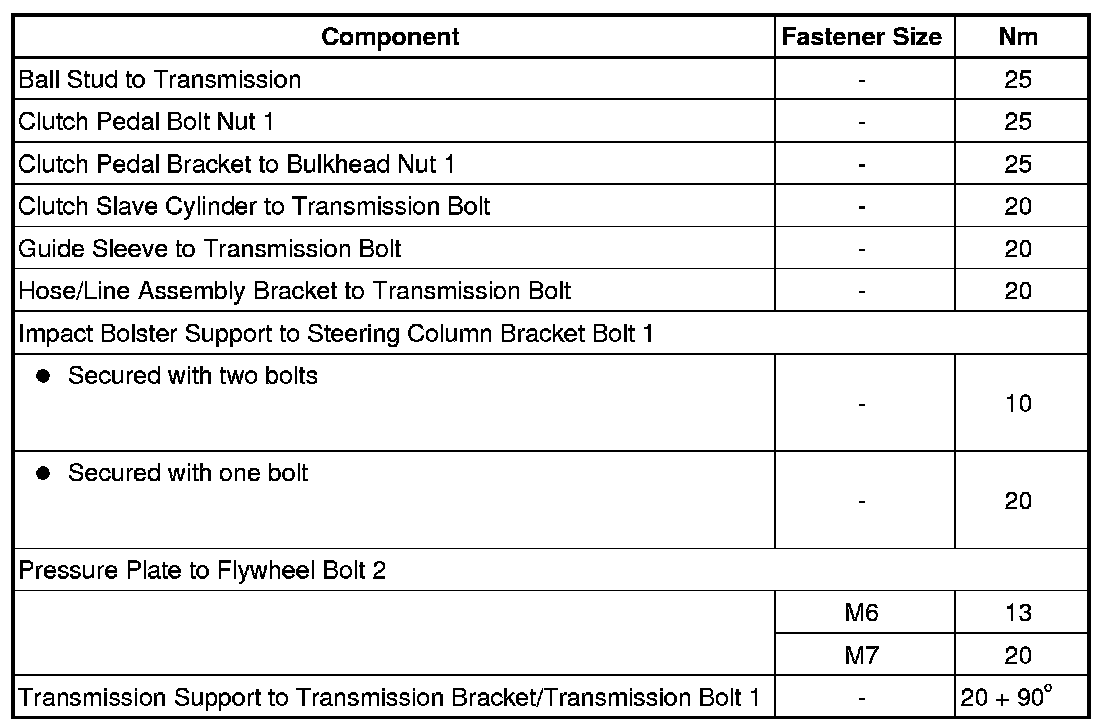

Fastener Tightening Specifications






• 1 Always replace

• 2 Loosen and tighten in small steps and in a diagonal sequence
