Steering Column Electronic Systems Control Module

Multifunction Steering Wheel

Steering Column Electronic Systems Control Module

Removing

- Remove steering wheel airbag.

- Remove driver side airbag unit.

- Disconnect both harness connectors at control module.

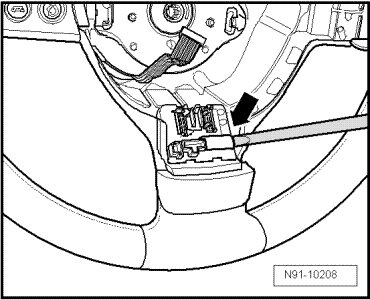

- Using a suitable screwdriver, carefully pry out control module - arrow -.





Installing

Install in reverse order of removal.

- Coding, refer to => [ Multifunction Steering Wheel ] Testing and Inspection.
