Belt Latch, 4 Door

Belt Latch, 4 Door

NOTE: Removal and installation is described for belt latch of left seat. The same instructions apply for removal and installation for belt latch of right seat.

Removing

- Remove front seat
- Position seat as far forward as possible.
- If present, disconnect wiring harness from seat frame.

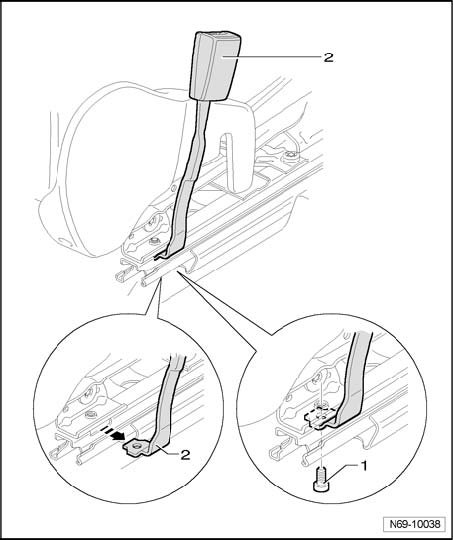

- Remove bolt - 1 - (20 Nm).

NOTE:
- The screw is micro-encapsulated and must be replaced every time it is loosened.
- Before new bolts are installed, the thread of the corresponding nut must be cleaned.







- Remove belt latch - 2 - from mount in seat rail - arrow -.







Installing

- Installation is performed in the reverse order of removal.
