Belt Latch, 2 Door

Belt Latch, 2 Door

NOTE: Removal and installation is described for belt latch of left seat. The same instructions apply for removal and installation for belt latch of right seat.

Removing

- Remove front seat
- Position seat as far forward as possible.

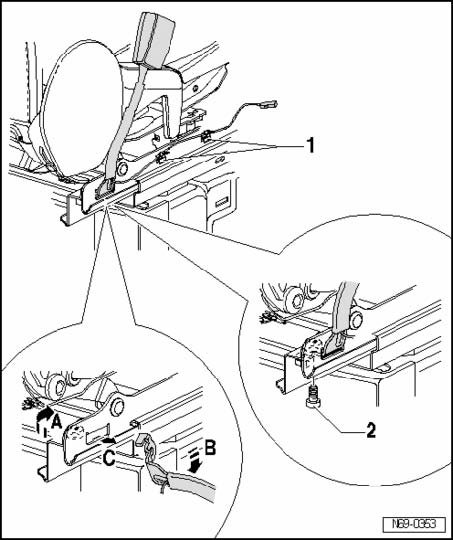

- If present, disconnect wiring harness - 1 - from seat frame.







- Remove bolt - 2 - (20 Nm).

NOTE:
- The screw is micro-encapsulated and must be replaced every time it is loosened.
- Before new bolts are installed, the thread of the corresponding nut must be cleaned.

- Turn belt latch 90 degrees clockwise - arrow A -.
- Swivel belt latch toward outside - arrow B -.
- Remove belt latch from mount in seat rail - arrow C -.

Installing

- Installation is performed in the reverse order of removal.
