Air Injection Pump Relay
>>
Locations
>>

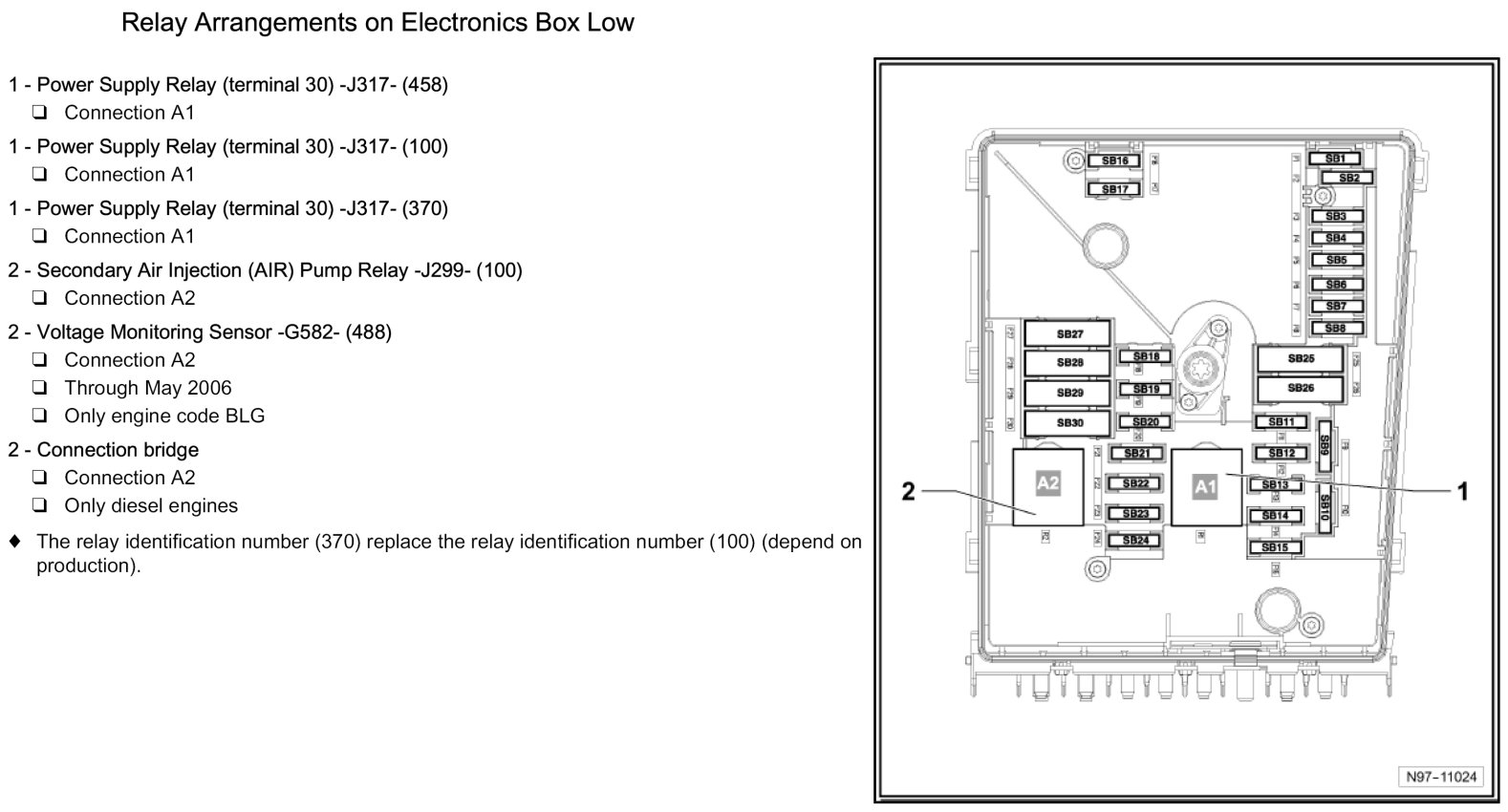

Relay Arrangements on Electronics Box Low
Relay Arrangements on Electronics Box Low
Relay Arrangements On Electronics Box Low:
