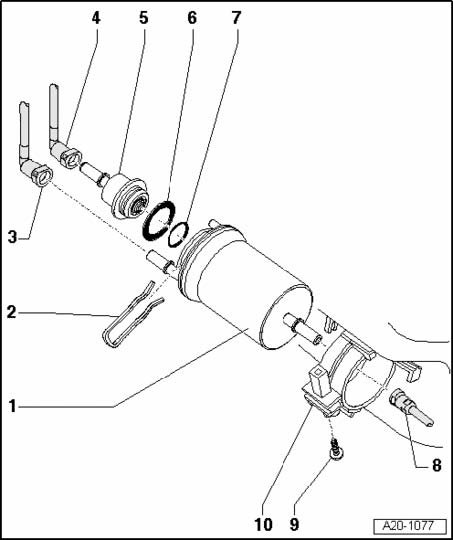

Fuel Tank With Attachments Assembly Overview

Fuel Tank With Attachments Assembly Overview

NOTE: From October 2005, the fuel pressure regulator is integrated in the fuel filter and cannot be replaced.







1 - Fuel filter
- New version with integrated fuel pressure regulator
- Direction of flow is marked with arrows
- Do not interchange connections
- Installation position: Pin on filter housing must engage in recess of guide on filter bracket.
2 - Retaining clip
- For fuel pressure regulator
3 - Fuel supply line
- Black
- From fuel tank
- Press in securing ring to disengage the lines.
4 - Fuel return line
- Blue
- To fuel tank
- Press in securing ring to disengage the lines.
5 - Fuel pressure regulator
- New version integrated in fuel filter
- 4 bar
- checking
6 - Gasket
- Replace
7 - O-ring
- Replace
8 - Fuel supply line
- Black
- To engine
- Press in securing ring to disengage the lines.
9 - 3 Nm
10 - Bracket
- For fuel filter
- Secured to fuel tank
