Secondary Air Injection System
Secondary Air Injection System

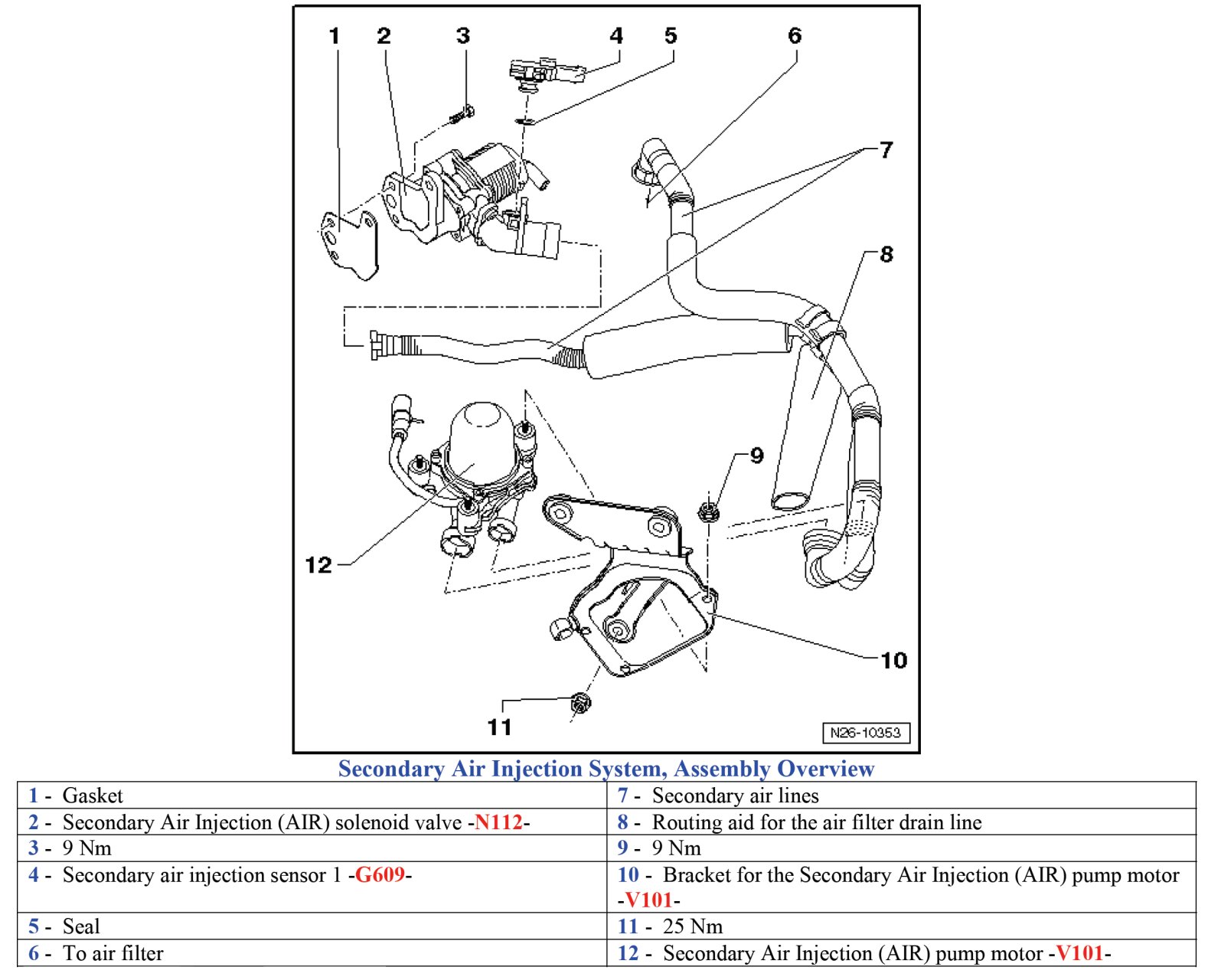

Secondary Air Injection System Assembly Overview:

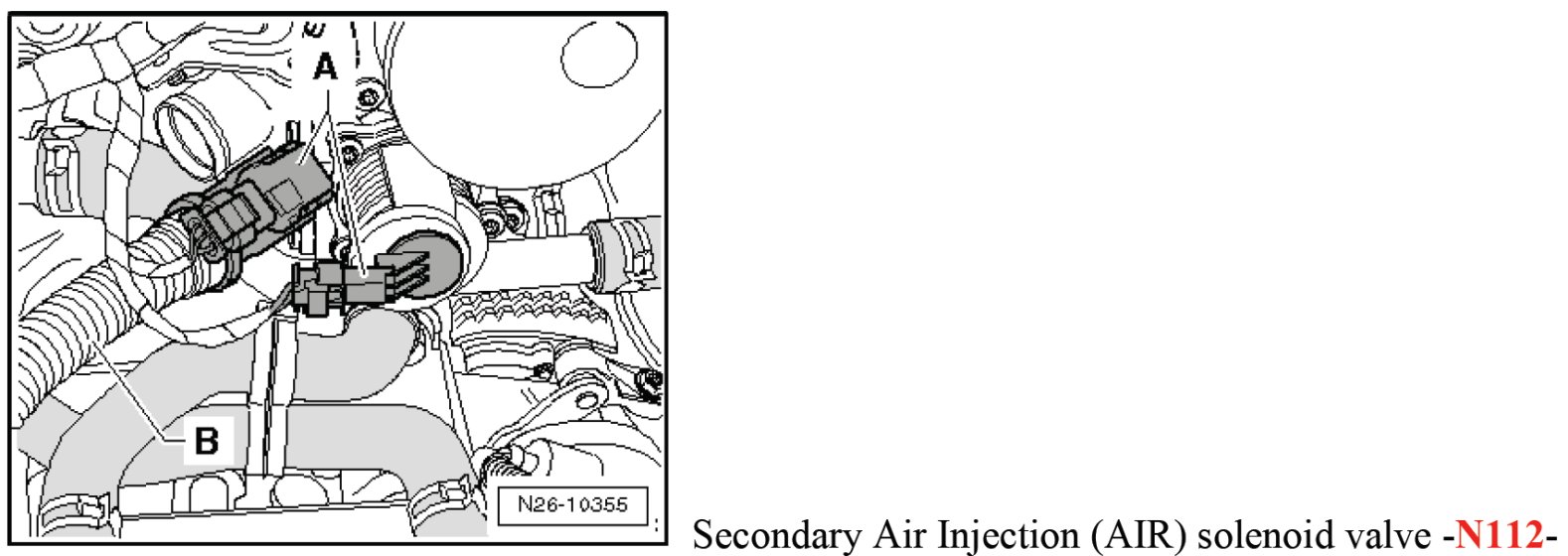

Secondary Air Injection (AIR) Solenoid Valve -N112-:

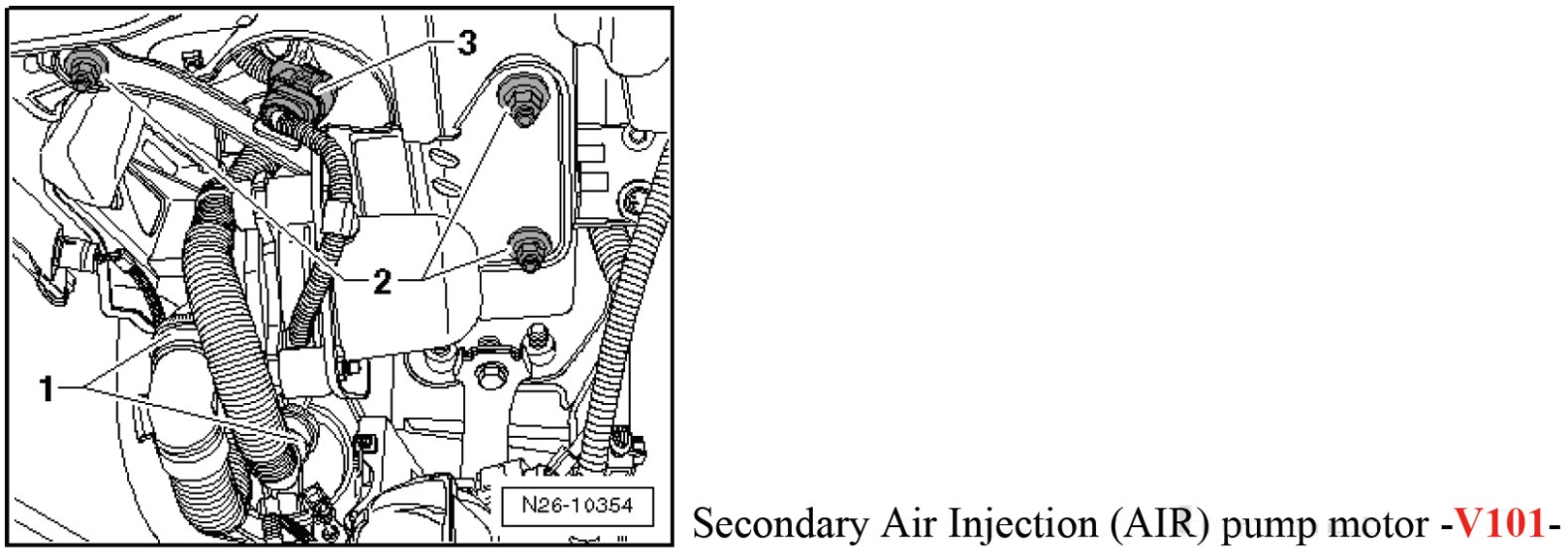

Secondary Air Injection (AIR) Pump Motor -V101-:
