High Beam Bulbs

Halogen Headlamp Bulb

High Beam Bulbs

• Illustrations depict replacement of lamp for high beam headlamp at left headlamp.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

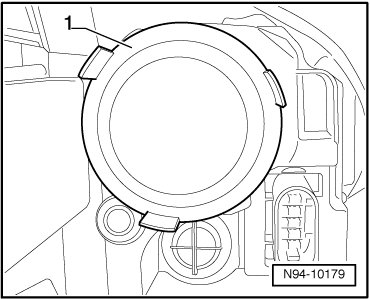

- Pull off cover cap - 1 -.

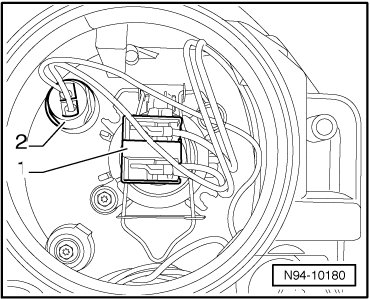

- Disconnect multi-pin harness connector - 1 -.

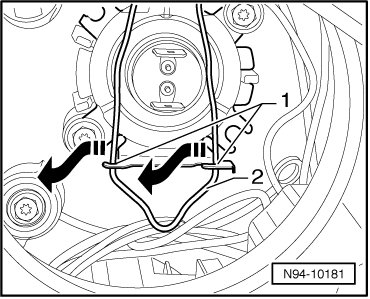

- Press spring retaining wire - 2 - in - direction of arrow - under catches - 1 - and fold spring retaining wire - 2 - upward.





- Remove High Beam Headlamp - 1 - from headlamp.





Installing

CAUTION!
When installing the cover cap, make sure the cap is properly seated. It is destroyed by ingress of water into headlamp.

• Do not touch the glass of the light bulb, when installing. Your fingers will leave traces of grease on the glass which, when the light is switched on, will evaporate and cloud the glass.

Install in reverse order of removal, noting the following:

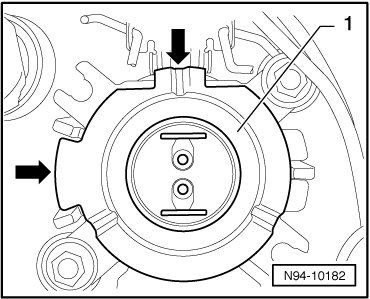

- Insert High Beam Headlamp - 1 - into recesses - arrows - on headlamp.





- Check headlamp for function.

- Check headlamp adjustment and adjust headlamp if necessary.
