Front Turn Signal Bulbs

• The following illustrations depict replacement of Front Turn Signal Light at left headlamp.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

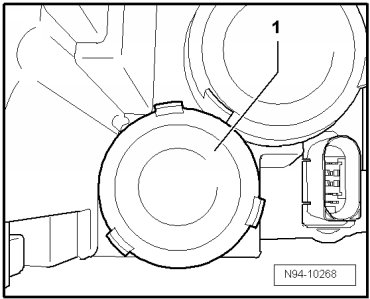

- Pull off cover cap - 1 -.

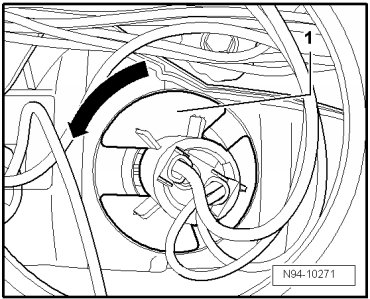

- Rotate lamp socket - 1 - with front turn signal light in - direction of arrow - and pull it, for as far as the cable lengths permit, out of reflector.

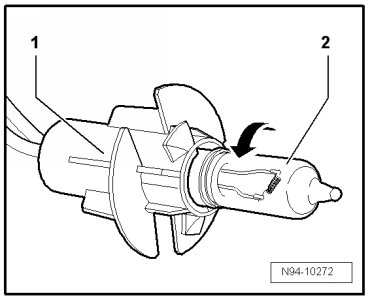

- Push front turn signal light - 2 - into socket - 1 - and rotate front turn signal light - 2 - in - direction of arrow -.





- Remove Front Turn Signal Light - 2 - from socket - 1 -.

Installing

CAUTION!
When installing the cover cap, make sure the cap is properly seated. It is destroyed by ingress of water into headlamp.

• Do not touch the glass of the light bulb, when installing. Your fingers will leave traces of grease on the glass which, when the light is switched on, will evaporate and cloud the glass.

Install in reverse order of removal, noting the following:

- Check headlamp for function.
