Center Mounted Brake Lamp: Service and Repair

High-Mount Brake Light

• Failure of LEDs in high-mount brake lights:

• Individual LEDs (Light Emitting Diodes) in auxiliary brake lights are combined into groups of up to four LEDs and are supplied with power as a group.

• The high-mount brake light is designed in such a way that it still meets legal requirements when one LED group fails.

• If another LED group fails, these legal requirements are no longer met.

• When one LED group fails, the intact LEDs are given a higher load, by which failure of other LED groups can be assumed in the near future.

• If more than four individual LEDs in auxiliary brake light have failed, the auxiliary brake light must be replaced (repair measure).

Special tools, testers and auxiliary items required

• Plastic wedge (T10039/1)

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

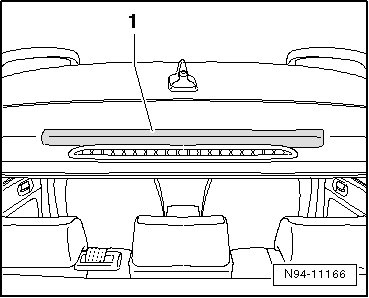

- Cover the area of the rear lid above the brake light with a strip of adhesive tape - 1 -.





CAUTION!
When removing high-mount brake light, ensure seal is not damaged.

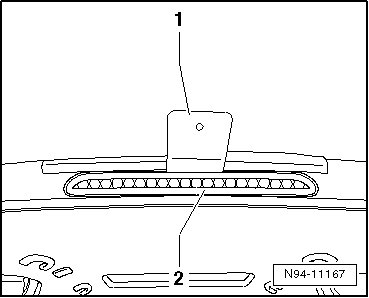

- Place the plastic wedge (T10039/1) - 1 - at the top between the high mount brake light ( M25) - 2 - and the rear lid.

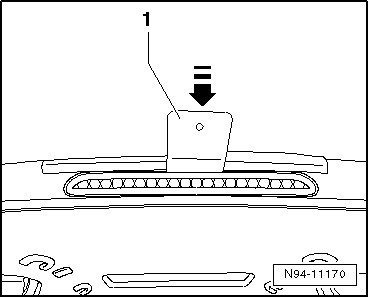

- Press the wedge in the direction of the arrow to release the high mount brake light (M25) and remove it from the rear lid.

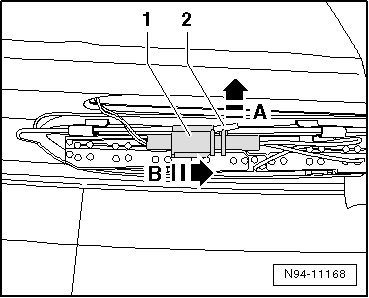

- Release the compact connector - 1 - by pressing the locking mechanism - 2 - in the direction of the arrow - A -. Slide the compact connector in the direction of the arrow - B - out of the retainer.

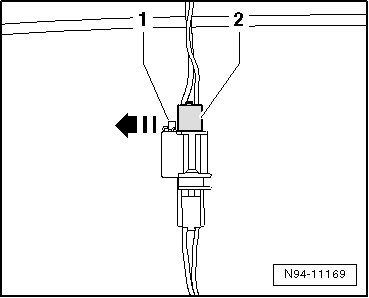

- Press the locking mechanism - 1 - in the direction of the arrow and remove the connector - 2 - upward.





Installing

• When installing High level brake light bulb (M25 ), ensure seal is seated correctly. Seal must not have any bulges and must not be damaged.

- Connect the connector and place the compact connector on the brake light.

- Clip brake light into rear lid again.

- Check the high mount brake light (M25) for correct function.
