Dust and Pollen Filter, Cleaning Housing and Removing and Installing Filter Element

Dust and Pollen Filter, Cleaning Housing and Removing and Installing Filter Element

• Clean the surrounding area of the dust and pollen filter in air conditioner shaft or heating before installing a new filter.

- Perform the following work procedure:

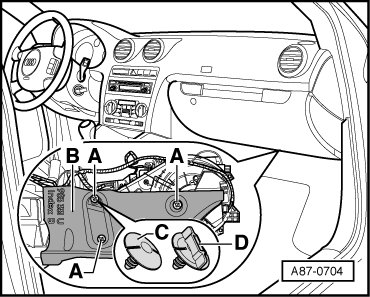

- Remove screw clips - A - and remove insulation mat - B -.





Screw clips - A - are available in different versions, e.g. - C - and - D -.





- Loosen screws - A - if necessary.

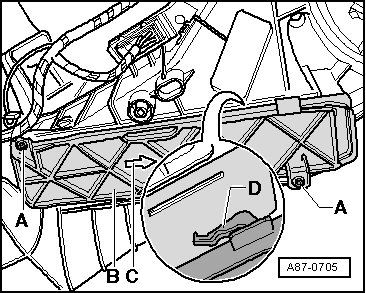

Bolt - A - is not installed on all vehicles. Bolts secure the cover - B - in the event the catches - D - no longer hold.

- Push cover - B - in direction of arrow - C - and remove cover.

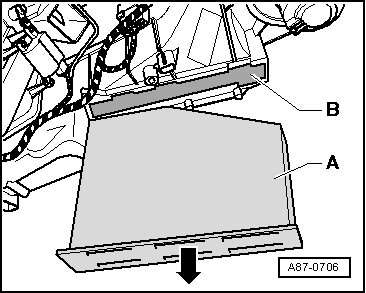

- Remove filter element - A - from shaft - B - of air conditioner or heater.





• Observe waste disposal regulations!

- Using e.g. a vacuum cleaner, clean shaft - B - of A/C unit or heater.

- Install in reverse order of removal.
