Power Take-Off Drive Chain Assembly Overview

Power Take-Off Drive Chain Assembly Overview

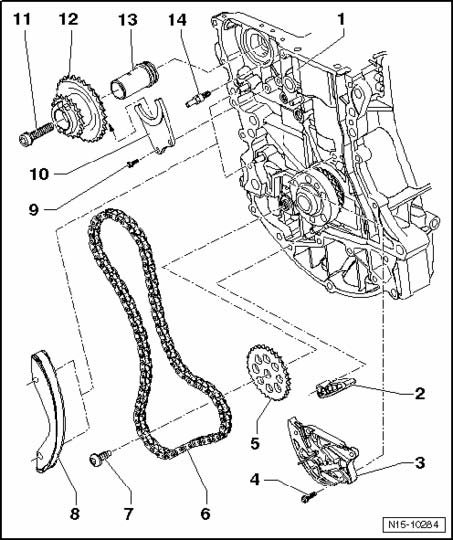

1 - Cylinder block
2 - Guide rail
^ Secured on upper section of oil pan
^ Oil before installing pin

3 - Chain tensioner
^ Secure with pin T10115

4 - 10 Nm
5 - Chain sprocket of oil pump
6 - Power Take-Off Drive Chain
^ From model year 2008 the roller chain has been changed to a toothed chain.
^ Removing:

- Remove engine.
- Remove control housing cover.
- Remove timing chain.
- Remove chain tensioner.
- Mark direction of travel.

^ Note when installing:

- Place on in original direction of travel.
- Chain must lie correctly in tensioning and glide tracks.
- Adjust valve timing.

7 - 20 Nm plus an additional 90° (1/4 turn)
^ Replace

8 - Guide rail
^ Oil before installing pin

9 - 10 Nm
10 - Axial bearing disc
11 - 60 Nm plus an additional 90° (1/4 turn)
^ Replace

12 - Double chain sprocket (drive wheel)
^ Oil journal before installing

13 - Journal for double chain sprocket (drive wheel)
14 - Pin for tensioning track, 40 Nm
^ For chain tensioner for timing chain
