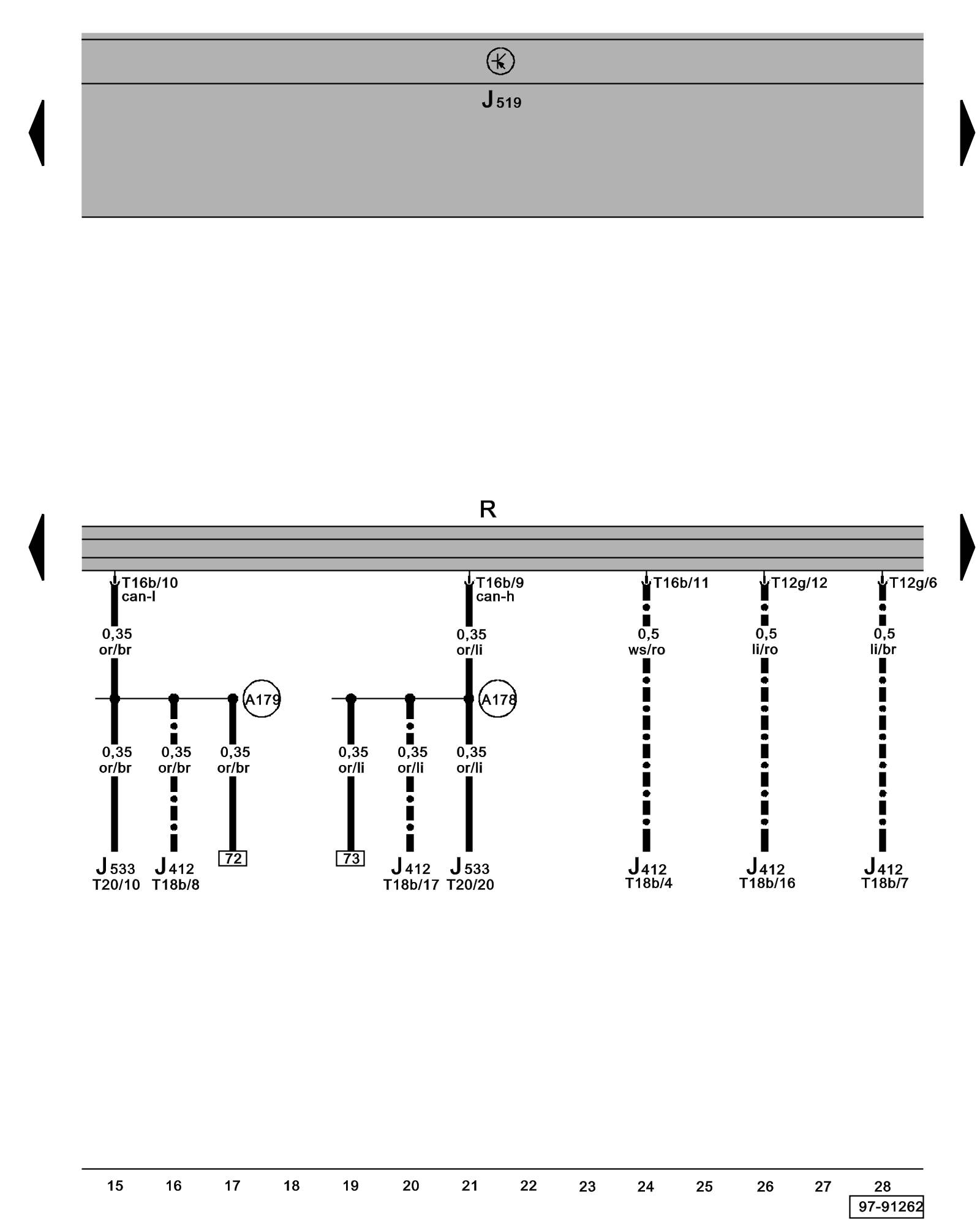

Diagram 46/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J412 - Operating Electronics and Telephone Control Module** Radio / Navigation And Antenna Systems Overview

J519 - Vehicle Electrical System Control Module

J533 - Data Bus On Board Diagnostic Interface

R - Radio

T12g - 12-Pin Connector

T18b - 18-Pin Connector

T20 - 20-Pin Connector

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-bus Connection (in instrument panel wiring harness)

** - Components not available on system preparation

_ . _ . _ - Only models with telephone/ telephone preparation

Previous Diagram 46/2 (Tracks 1-14)

Next Diagram 46/4 (Tracks 29-42)
