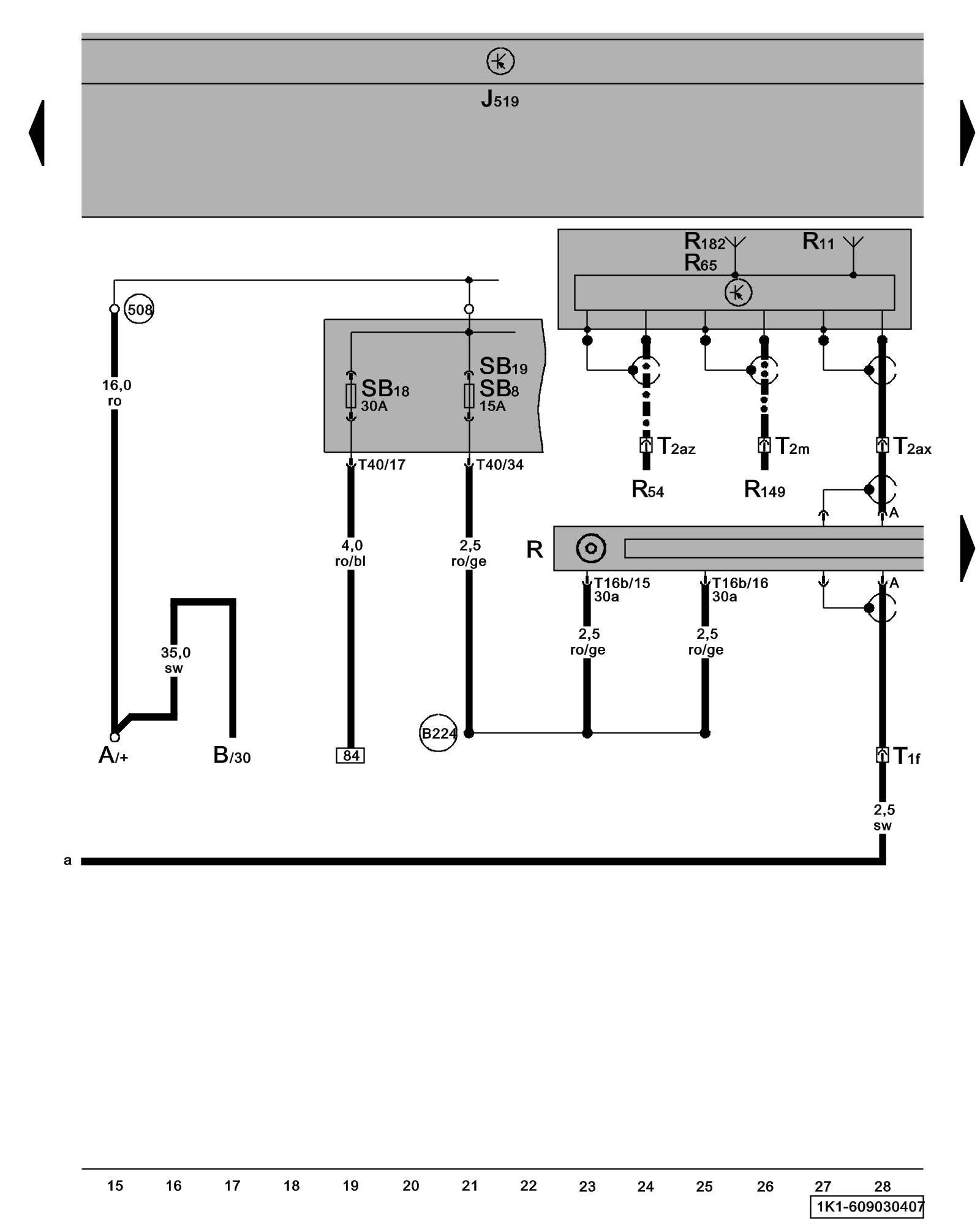

Diagram 609/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Antenna, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

J519 - Vehicle Electrical System Control Module

R - Radio

R11 - Antenna Radio / Navigation And Antenna Systems Overview

R54 - Cellular Telephone Radio / Navigation And Antenna Systems Overview

R65 - Telephone Antenna

R149 - Auxiliary Engine Coolant Heating RF Receiver

R182 - Auxiliary Heater Antenna

SB8 - Fuse 8 (on fuse panel B) Overview Of Fuses (SA), (SB)

SB18 - Fuse 18 (on fuse panel B) Overview Of Fuses (SA), (SB)

T1f - Single Connector, behind right C-pillar trim

T2m - Double Connector, near roof antenna

T2ax - Double Connector, near roof antenna

T2az - Double Connector, near roof antenna

T16b - 16-Pin Connector

T40 - 40-Pin Connector

(508) - Threaded Connection terminal 30 (on electronics box)

(B224) - Radio Connection 1 (in interior wiring harness)

_ . _ . _ - Only models with telephone/ telephone preparation

_ . . _ - Only models with auxiliary engine coolant heating RF receiver

Previous Diagram 609/2 (Tracks 1-14)

Next Diagram 609/4 (Tracks 29-42)
