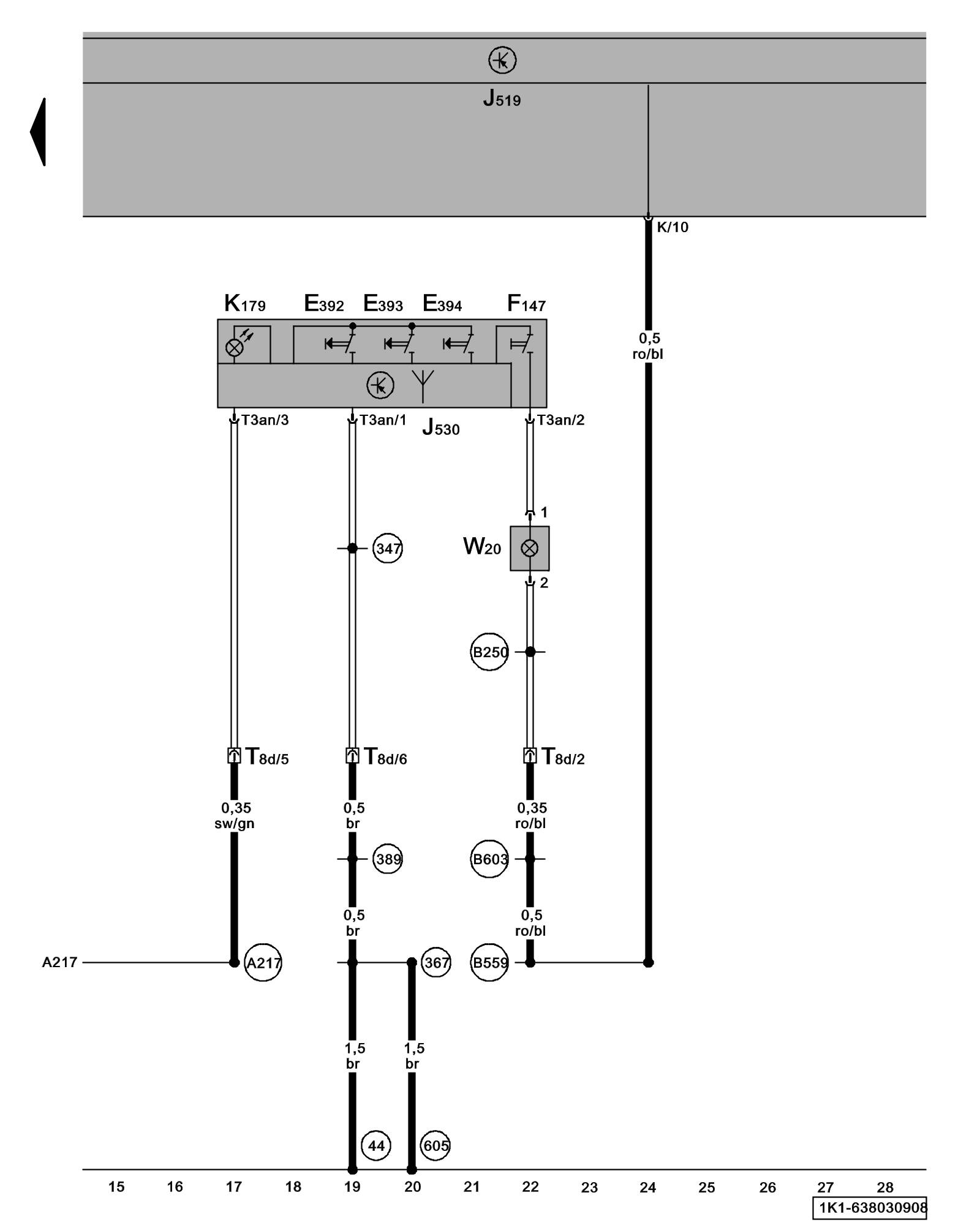

Diagram 638/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Garage Door Opener Button, Driver's Illuminated Make-up Mirror Light, Driver's Make-Up Mirror Light Contact Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E392 - Garage Door Opener Button 1

E393 - Garage Door Opener Button 2

E394 - Garage Door Opener Button 3

F147 - Driver's Make-Up Mirror Light Contact Switch

J519 - Vehicle Electrical System Control Module

J530 - Garage Door Opener Control Module

K179 - Garage Door Opener Indicator Lamp

T3an - 3-Pin Connector

T8d - 8-Pin Connector, near front interior light

W20 - Driver's Illuminated Make-up Mirror Light

(44) - Ground Connection (on left lower A-pillar) Overview of Ground Connections In Interior

(347) - Ground Connection (in roof wiring harness)

(367) - Ground Connection 2 (in main wiring harness)

(389) - Ground Connection 24 (in main wiring harness)

(605) - Ground Connection (on upper steering column) Overview of Ground Connections In Interior

(A217) - Plus Connection 8 (15a) (in instrument panel wiring harness)

(B250) - Plus Connection (in roof wiring harness)

(B559) - Plus Connection 1 (30g) (in main wiring harness)

(B603) - Plus Connection 2 (30g) (in main wiring harness) Foil Conductor
