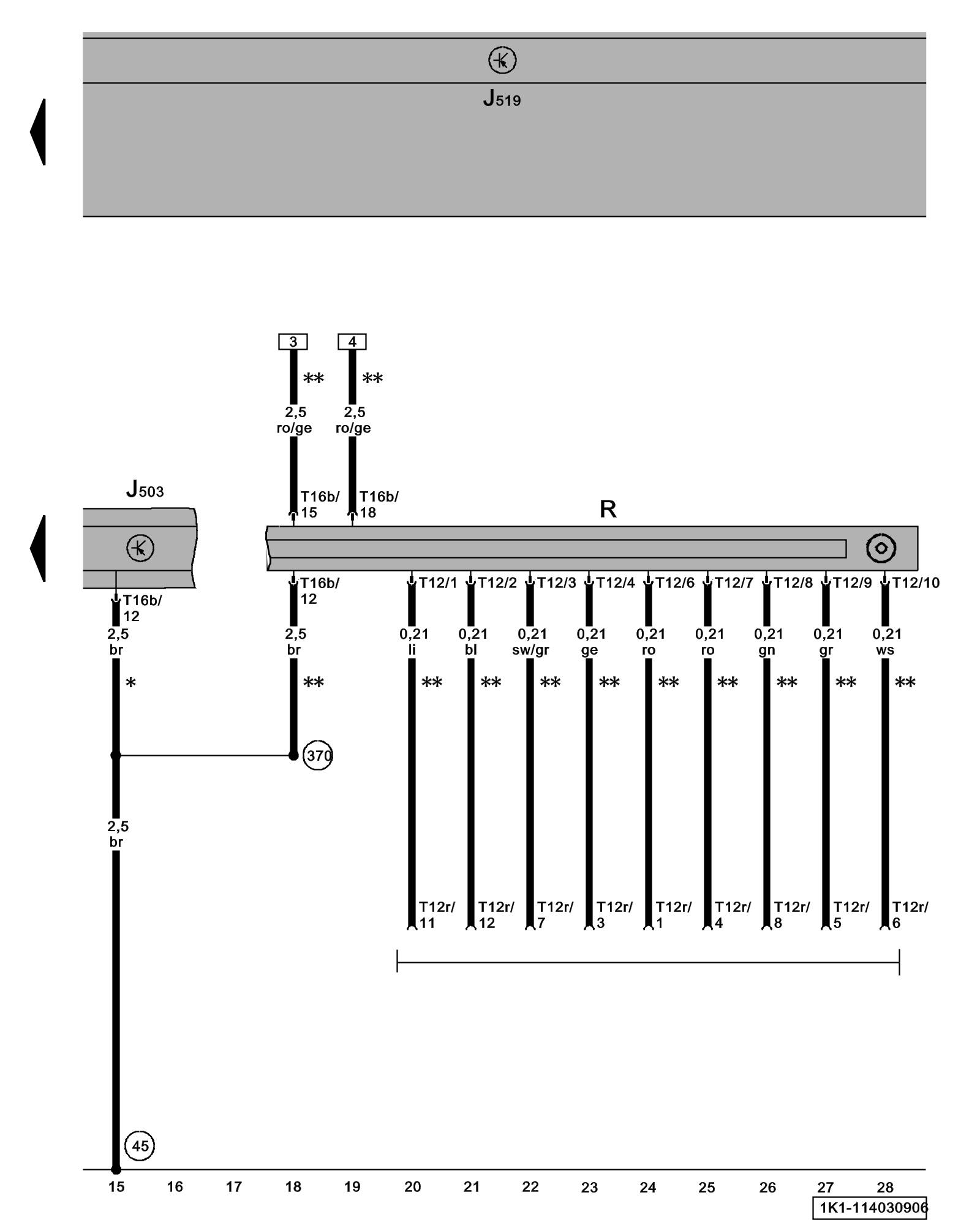

Diagram 114/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Control Module, Radio, Preparation for Multimedia (Apple iPod), USB





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Radio / Navigation And Antenna Systems Overview

J519 - Vehicle Electrical System Control Module

R - Radio

T12 - 12-Pin Connector

T12r - 12-Pin Connector, below front center armrest, preparation for multimedia (Apple iPod)

T16b - 16-Pin Connector

(45) - Ground Connection (behind instrument panel, center) Overview of Ground Connections In Interior

(370) - Ground Connection 5 (in main wiring harness)

* - Only with radio/navigation system

** - Only with radio

Previous Diagram 114/2 (Tracks 1-14)
