Brake Pedal Assy: Description and Operation

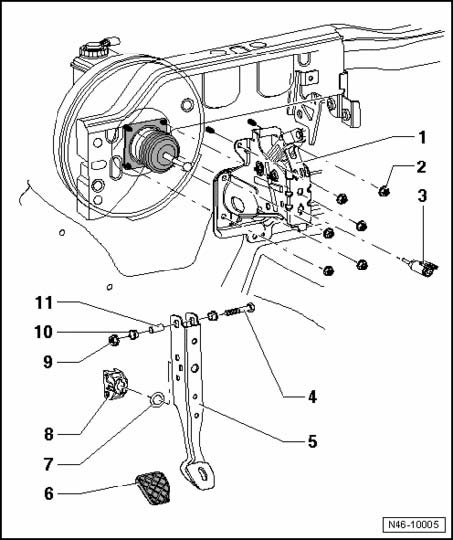

Brake Pedal Assembly Overview

CAUTION!
^ The path of the brake pedal must not be shortened via extra floor mats.

Before installing, lubricate all mounting points with grease, part No. G 000 602.





1 - Mounting bracket
2 - Self-locking hex nut, 25 Nm
3 - Brake light switch F
^ Includes brake pedal switch F47
^ On vehicles from 11.06.05, brake light switch F is located on brake master cylinder
^ Clip brake pedal at pressure rod of brake booster before installing brake light switch
^ Lubricate tappet head with polycarbamide grease G 052 142 A2.

4 - Hex head screw
5 - Brake pedal
6 - Cover
7 - Ball socket
8 - Mount
^ For ball head of brake servo push rod

9 - Self-locking hex nut, 25 Nm
10 - Bushing
11 - Pivot pin
