Inner Door Seal

Inner Door Seal

• Removing and installing is described only for the left inner door seal. Removing and installing the right inner door seal is similar

Removing





- Pull off inner door seal from body flange.

Installing

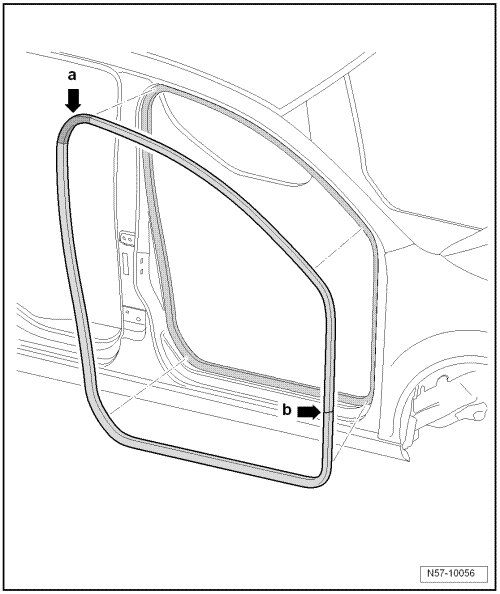

- Align inner door seal with vulcanized point - arrow b - at the height of the lower hinge.

- Start installation of inner door seal in upper radius - arrow a - of door opening.
