Bellows

Bellows

Removing







- Slide sun shade toward rear.







- Tilt open sunroof glass panel.

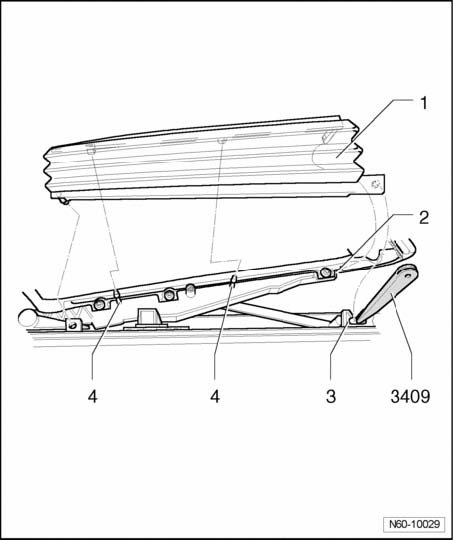

- Carefully unclip bellows - 1 - from lower section of slotted guide rail - 3 - using a trim removal wedge 3409 .
- Pull bellows - 1 - off mounting pins - 4 -.
- Disengage bellows - 1 - at top - rear - 2 -.
- Remove bellows - 1 -.

Installing







- Slide sun shade toward rear.







- Tilt open sunroof glass panel.
- Engage bellows - 1 - first at top - rear - 2 -.
- Clip bellows - 1 - with mounting pins - 4 - into slotted guide rail.
- Engage bellows - 1 - at bottom, rear - 3 - and clip bellows in starting at front in lower section of slotted guide rail.
