Steering Column Trim

Storage Compartments, Covers and Trim

Steering Column Trim

Removal

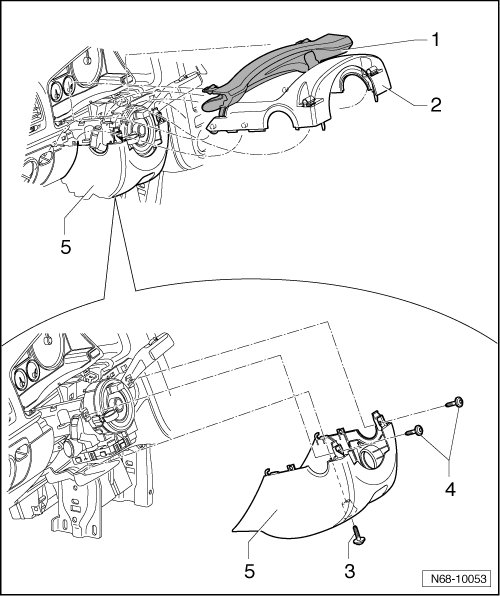

• For reasons of clarity, the steering wheel is not depicted in the illustration, it is not necessary to remove it.

- Remove gap cover - 1 - and upper steering column trim - 2 - from mounts.

- Remove bolt - 3 - (1.5 Nm).

- Remove the two bolts - 4 - (1.5 Nm).

- Remove lower steering column trim - 5 - from mounts.





Installation

- To install, perform the steps used for removal in reverse order.
