Instrument Panel Center Vents, Vehicles without Climatronic, Rabbit from MY 2004

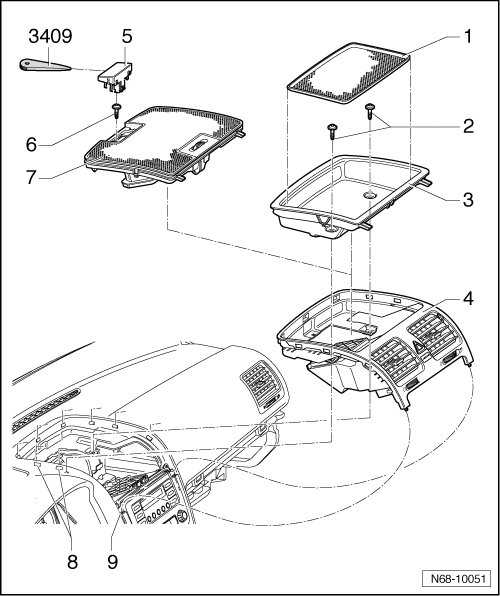

• To provide a better overview, components are shown removed in the following illustration.

Removal

- Remove lining mat - 1 - from storage compartment.

- Remove the two bolts - 2 - (1.5 Nm).

- Remove the storage compartment - 3 - from the air vent - 4 -.

Vehicles with Climatronic

Items - 5 -, - 6 -, - 7 -, - 8 - and - 9 - only apply to vehicles with Climatronic.

Instrument panel center vent (vehicles with Climatronic), removing. Refer to => [ Instrument Panel Center Vents, Vehicles with Climatronic, Rabbit from MY 2004 ] Instrument Panel Center Vents, Vehicles With Climatronic, Rabbit From My 2004





• The two bolts - 1 - in this location are already removed on vehicles without Climatronic.

- Place two trim removal wedges (3409) in lower vent seam - arrows - and press vent upward out of instrument panel mounts.

- Press the corresponding catches and disconnect wiring harnesses from passenger airbag warning light switch and indicator light.





Installation

- To install, perform the steps used for removal in reverse order.
