Eyeglass Compartment In Headliner

Storage Compartments, Covers and Trim

Eyeglass Compartment in Headliner

Removal

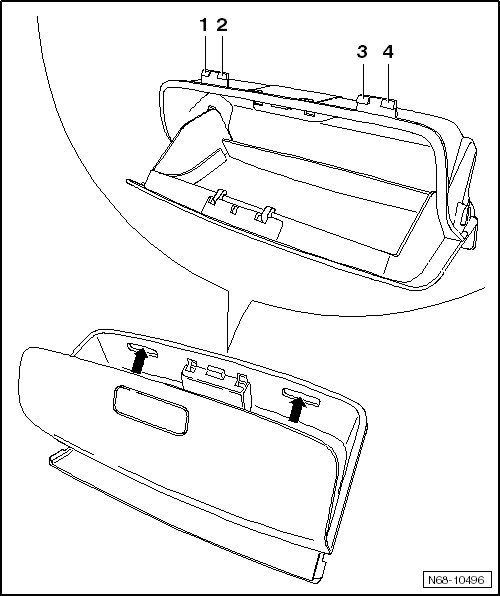

• The eyeglass compartment is illustrated removed.

• All 4 retainers must be opened in order to remove the eyeglass compartment.

- Open the eyeglass compartment.

There are two slots - arrows - on the top of the eyeglass compartment.

- Unlock the retainers - 1 - and - 2 - in the left slot.

- Unlock the retainers - 3 - and - 4 - in the right slot.

- Loosen the eyeglass compartment from the bracket in the headliner.





Installation

- Install the eyeglass compartment into the bracket and latch it into place.
