Center Cover, Rabbit From My 2004






Storage Compartments, Covers and Trim

Center Cover, Rabbit from MY 2004

Removal

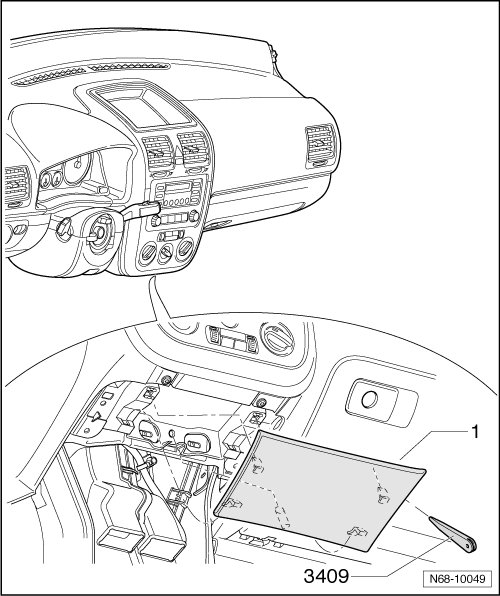

- Lift cover - 1 - out of mounts using trim removal wedge (3409).





Installation

- To install, perform the steps used for removal in reverse order.
