Upper B-Pillar Trim

Pillar and Side Trim

Upper B-pillar Trim

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removal

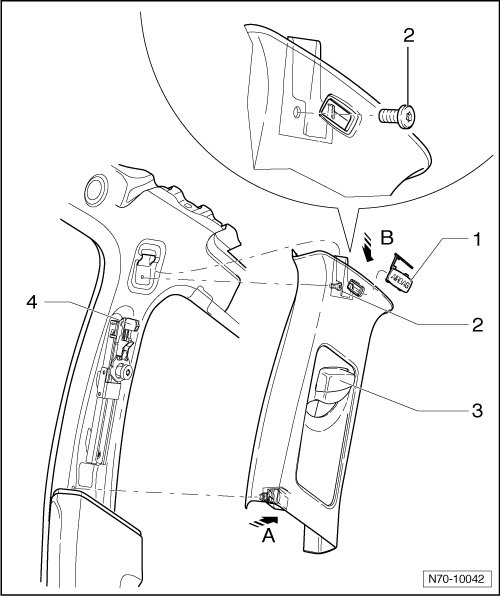

- Remove airbag emblem - 1 - and remove screw - 2 - (4 Nm).

• When re-installing, airbag emblem - 1 - must be replaced.

- Pull trim in lower area out of mounts in body - arrow A -.

- Remove trim from door seal piping.

- Pull trim out of top mount - arrow B -.





4-door vehicles

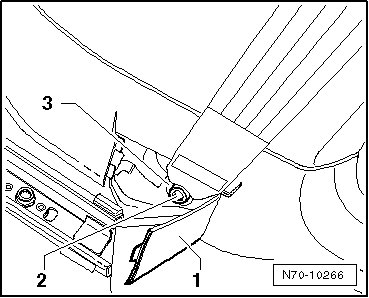

- Open flap - 1 - in lower area of B-pillar.





- Press floor covering slightly to side and remove screw - 2 - (40 Nm).

- Remove belt anchor - 3 - from body.

2-door vehicles

- Remove seat bench. Refer to => [ Bench Seat ] Rear Seats.

- Remove 2-door sill panel trim. Refer to => [ Sill Panel Trim, 2-door ] Service and Repair

- Remove anchor rail from seat belt. Refer to => [ Front Seat Belts, 2-door ] Seat Belts

All vehicles

- Pull seat belt through trim opening.

Installation

• When installing, driver for belt height adjuster - 4 - and button in trim - 3 - must be located in the same position.

• Before installation, clip must be checked for damage and replaced if necessary.





- To install, perform the steps used for removal in reverse order.
