Driver Side Lower A-Pillar Trim

Pillar and Side Trim

Driver Side Lower A-pillar Trim

Removal

- Disengage sill panel trim from body in lower A-pillar trim transition area.

• 2–door: => [ Sill Panel Trim, 2-door ] Service and Repair

• 4–door: => [ Sill Panel Trim, 4-door ] Service and Repair

- Remove side instrument panel covers. Refer to => [ Instrument Panel Side Covers ] Service and Repair

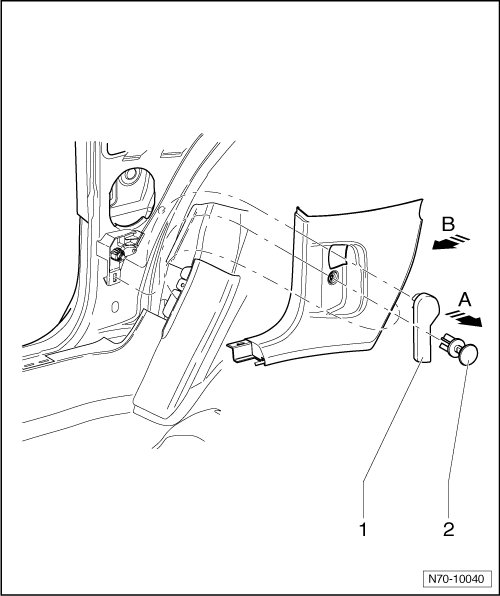

- Remove hood operating lever - 1 -.

- Remove clip - 2 -.

- Remove trim from body - arrow A -.

- Remove trim from door seal piping.

- Pull trim out of mount - arrow B -.

• Before installation, clip - 2 - must be checked for damage and replaced if necessary.





Installation

- To install, perform the steps used for removal in reverse order.
