Luggage Compartment Side Trim

Luggage Compartment Trim

Luggage Compartment Side Trim

• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removal

- Switch off ignition.

- Remove floor covering from vehicle.

2-door vehicles

- Remove upper B-pillar trim. Belt anchor or belt anchor rail do not need to be removed from front seat belt. Refer to => [ Upper B-pillar Trim ] Pillar and Side Trim.

- Remove seat bench. Refer to => [ Bench Seat ] Rear Seats.

- Remove backrest. Refer to => [ Backrest ] Rear Seats

- Remove side trim. Refer to => [ Side Trim, 2-door ] Pillar and Side Trim

4-door vehicles through 06.2005

- Remove seat bench. Refer to => [ Bench Seat ] Rear Seats.

- Remove 4-door side upholstery:

• with rear side airbags: => [ Side Upholstery with Side Airbag, 4-door ] Rear Seats

• without rear side airbags: => [ Side Upholstery, 4-door ] Rear Seats

- Wheel housing trim, 4-door, removing, refer to => [ Wheel Housing Trim, 4-door ] Service and Repair

4-door vehicles with rear side airbag, from 06.2005

- Remove 4-door side upholstery:

• with rear side airbags: => [ Side Upholstery with Side Airbag, 4-door ] Rear Seats

- Wheel housing trim, 4-door, removing, refer to => [ Wheel Housing Trim, 4-door ] Service and Repair

4-door vehicles without rear side airbag, from 06.2005

- Remove wheel housing trim on 4-door vehicles without rear side airbag. Refer to => [ Wheel Housing Trim, 4-door, Vehicles Without Rear Side Airbag from June 2005 ] Service and Repair

All vehicles

- Remove rear lock carrier cover. Refer to => [ Rear Lock Carrier Cover ] Rear Lock Carrier Cover

- Remove luggage compartment cover side compartment. Refer to => [ Luggage Compartment Cover Side Storage Compartment ] Luggage Compartment Cover Side Storage Compartment

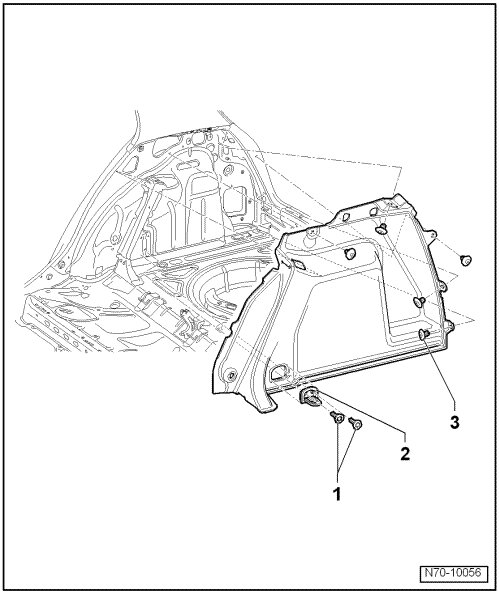

- Remove the two bolts - 1 - (8 Nm) and remove the anchor point - 2 -.

- Remove five press buttons - 3 - and remove trim from vehicle.
