Luggage Compartment Cover Side Storage Compartment

Luggage Compartment Trim

Luggage Compartment Cover Side Storage Compartment

• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removal

- Switch off ignition.

2-door vehicles

- Remove upper B-pillar trim. Belt anchor rail does not need to be removed from front seat belt. Refer to => [ Upper B-pillar Trim ] Pillar and Side Trim

- Remove seat bench. Refer to => [ Bench Seat ] Rear Seats.

- Remove backrest. Refer to => [ Backrest ] Rear Seats

- Remove side trim. Refer to => [ Side Trim, 2-door ] Pillar and Side Trim

4-door vehicles through 06.2005

- Remove seat bench. Refer to => [ Bench Seat ] Rear Seats.

- Remove 4-door side upholstery:

• with rear side airbags: => [ Side Upholstery with Side Airbag, 4-door ] Rear Seats

• without rear side airbags: => [ Side Upholstery, 4-door ] Rear Seats

- Wheel housing trim, 4-door, removing. Refer to => [ Wheel Housing Trim, 4-door ] Service and Repair

4-door vehicles with rear side airbag, from 06.2005

- Remove 4-door side upholstery:

• with rear side airbags: => [ Side Upholstery with Side Airbag, 4-door ] Rear Seats

- Wheel housing trim, 4-door, removing: => [ Wheel Housing Trim, 4-door ] Service and Repair

4-door vehicles without rear side airbag, from 06.2005

- Remove wheel housing trim on 4-door vehicles without rear side airbag: => [ Wheel Housing Trim, 4-door, Vehicles Without Rear Side Airbag from June 2005 ] Service and Repair

All vehicles

- Remove lock carrier cover from catches in compartment transition area.

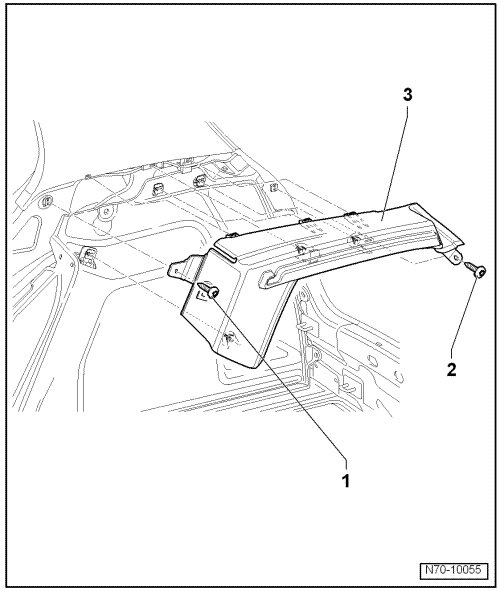

- Remove bolts - 1 - and - 2 - (1.5 Nm).

- Remove compartment - 3 - from mounts.

- Depending on vehicle equipment, disconnect wiring harnesses from compartment.





Installation

- To install, perform the steps used for removal in reverse order.

• Before installing, check securing clips for damage and replace if necessary.
