Sill Panel Trim, 4-Door

Sill Panel Trim

Sill Panel Trim, 4-door

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removal

- Remove the rear bench seat from the front anchoring points. Refer to => [ Bench Seat ] Rear Seats.

• It is not necessary to completely remove the rear bench seat.



- Remove 4-door vehicle wheel housing trim in sill panel strip transition area from mount.

- Pull sill panel trim out of front sill panel and door seal piping.

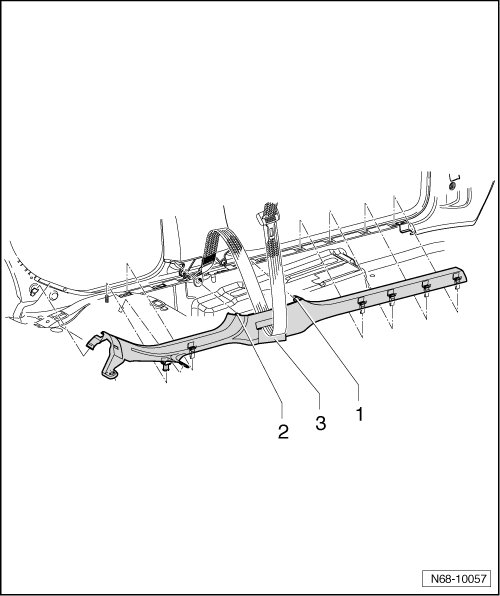

- Remove guide - 1 - from lower B-pillar trim.

- Pull sill panel trim out of rear sill panel and door seal piping.

- Remove guide - 2 - from lower B-pillar trim.

- Open strap - 3 - and feed seat belt through it.

• Before installing, check the 6 securing clips for damage and replace if necessary.





Installation

- To install, perform the steps used for removal in reverse order.
