Right Trim, Driver Side

Right Trim, Driver Side

Removing

- Switch off ignition.
- Remove side instrument panel cover on front passenger-side
- Remove right trim panel on drivers side
- Remove center cover

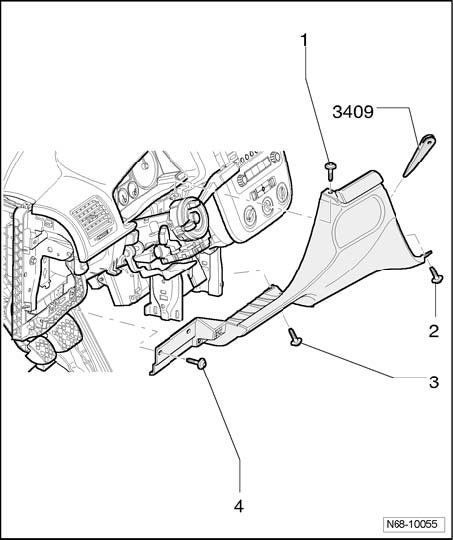

- Remove bolts - 1 - , - 2 - , - 3 - and - 4 - (1.5 Nm).







- Using trim removal wedge 3409 , disengage trim panel from mounts.







Installing

- Installation is performed in the reverse order of removal.

NOTE: When installing, bolts must be installed in the sequence - 1 - , - 2 - , - 3 - , and - 4 - (1.5 Nm).
