Center Instrument Panel Trim

Center Instrument Panel Trim

Removing

- Remove instrument panel center vent:
- Vehicles without Climatronic
- Vehicles with Climatronic

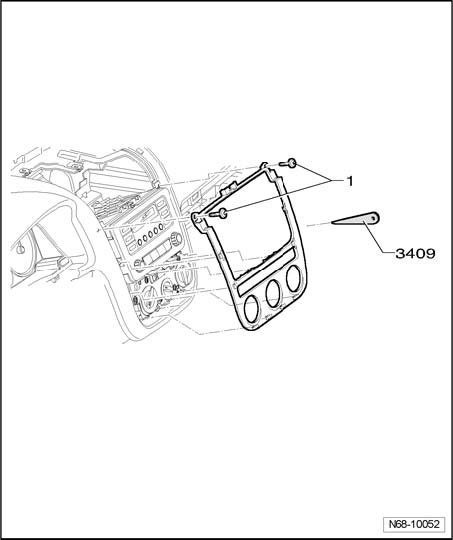

- Remove the two bolts - 1 - (1.5 Nm).







- Using trim removal wedge 3409 , pry trim in area of locking mechanisms out of mounts in instrument panel.







Installing

- Installation is performed in the reverse order of removal.
