Glove Compartment

Glove Compartment

Removing

- Switch off ignition.
- Remove side instrument panel cover on front passengers side
- Disengage sill panel trim from body in lower A-pillar trim transition area.
- 2door Sill
- 4door Sill

- Remove passengers side A-pillar trim
- Remove center cover

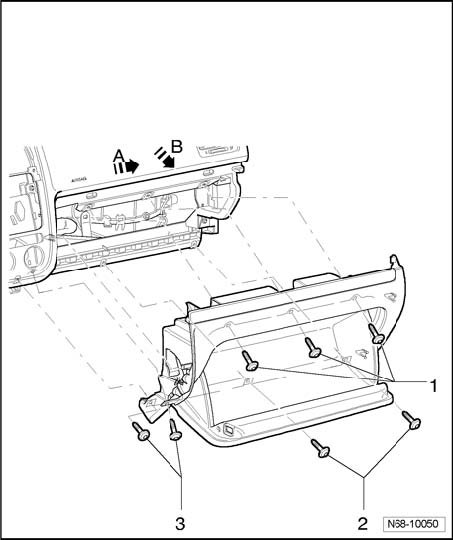

- Remove 7 screws - 1 - , - 2 - , and - 3 - (1.5 Nm)
- Slide glove compartment outward until stops - arrow A -.
- Disengage glove compartment from instrument panel - arrow B -.
- Disconnect wiring harness from lights and contact switch.
- In vehicles with glove compartment cooling, disconnect A/C channel from glove compartment.







- In vehicles with footwell lights, disconnect wiring harness from lights.







Installing

- Installation is performed in the reverse order of removal.
