Footwell Cover, Driver Side

Footwell Cover, Driver Side

Removing

- Switch off ignition.

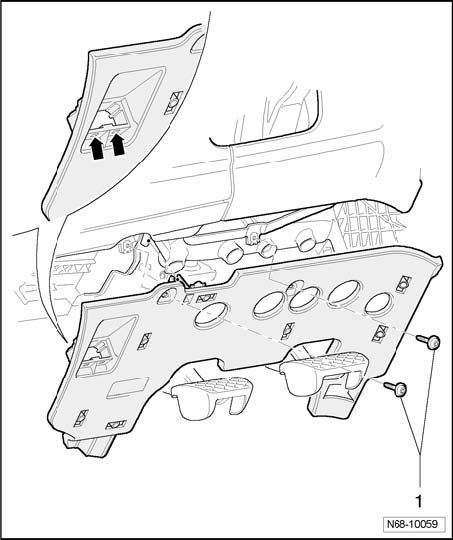

- Remove the two bolts - 1 - (1.5 Nm).
- Remove cover from mounts and disconnect wiring harness from footwell lights.







- Press the two locking mechanisms - arrows - and disconnect diagnostic connector from cover.







Installing

- Installation is performed in the reverse order of removal.
