Procedures

Cupholder, Highline Center Console, Servicing

NOTE: If a cupholder is loose or has fallen out, it is not always necessary to replace it. It may be possible to service it.

Determining if Service is Possible

A partial replacement should only be done if servicing is not possible, e.g. because components are too heavily deformed, broken, or damaged in any other way and correct function of the cupholder can no longer be ensured.

- Remove Highline center console cupholder







- Loosen cover - 1 - from cupholder - arrow -.

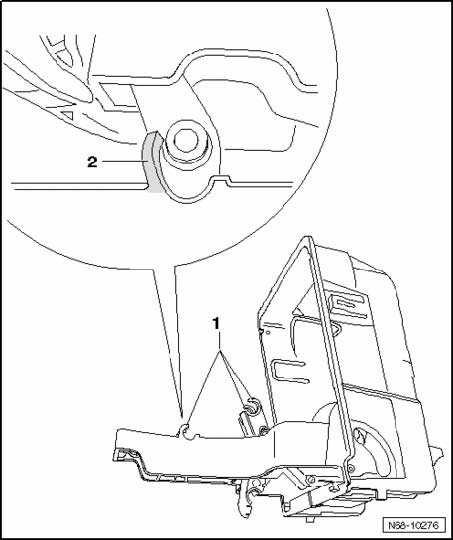

- Check all four cupholder mounting points - 1 - for damage.
- If a mounting point - 2 - is bent up sharply, replace cupholder.

NOTE: The cupholder should be replaced if there is any further damage to components that affect proper cupholder function.







Cupholder, Servicing

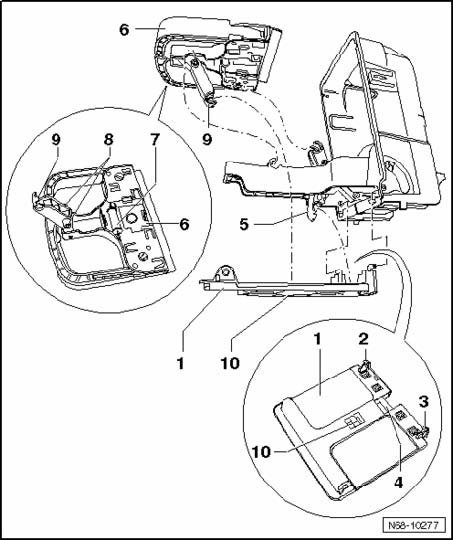

- Insert lower cover - 1 - over outer mounting pins - 2 - and - 3 - in cupholder.
- Position mounting pins - 4 - in front of mount - 5 -.
- Insert upper part - 6 - over pins - 7 - and mounting pins - 8 - in cupholder.







- This places the mount - 9 - in front of the pins - 10 -.

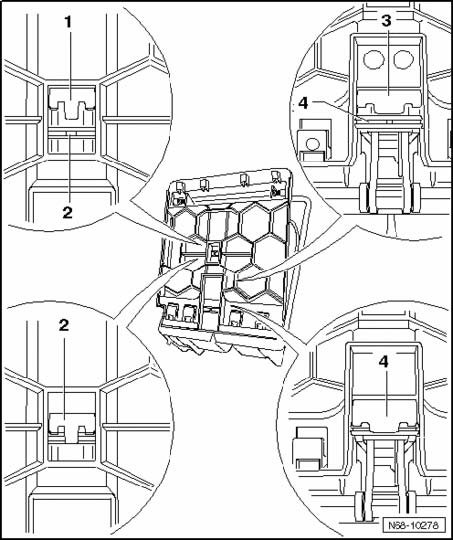

- Close cupholder, engaging mounts - 1 - and - 3 - automatically with corresponding pins - 2 - and - 4 -.







- Open cupholder and insert cover.







Cupholder, Installing

- Installation is performed in the reverse order of removal.
