Carpet: Service and Repair

Carpet

=> [ Carpeting ]

Carpeting

Removal

- Remove front seats. Refer to => [ Front Seat ] Front Seats

- Remove accelerator pedal module.

- Remove center console:

• Basic: => [ Center Console, Basis, Rabbit from MY 2004 ] Service and Repair

• Highline: => [ Center Console, Highline, Rabbit from MY 2004 ] Service and Repair

- Remove side instrument panel covers. Refer to => [ Instrument Panel Side Covers ] Service and Repair

- Remove hood release lever.

- Remove sill panel trim:

• 2–door: => [ Sill Panel Trim, 2-door ] Service and Repair

• 4–door: => [ Sill Panel Trim, 4-door ] Service and Repair

- Remove lower A-pillar trim:

• Driver side: => [ Driver Side Lower A-pillar Trim ] Pillar and Side Trim

• Passenger side: => [ Passenger Side Lower A-pillar Trim ] Pillar and Side Trim

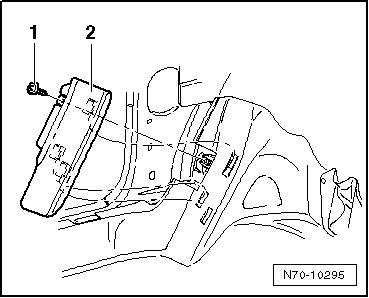

- Remove bolt - 1 - (1.5 Nm) and pull support cover - 2 - upward out of mounts in floor panel.





Only 2-door vehicles and vehicles with electrical seat adjustment

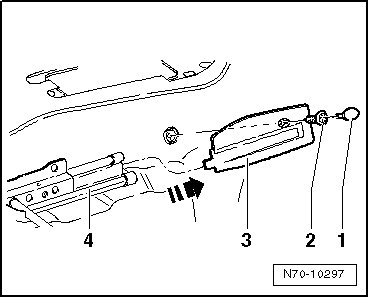

- Remove cover cap - 1 - and remove bolt - 2 - (1 Nm).

- Remove bracket - 3 - from seat rail - 4 -.

All vehicles

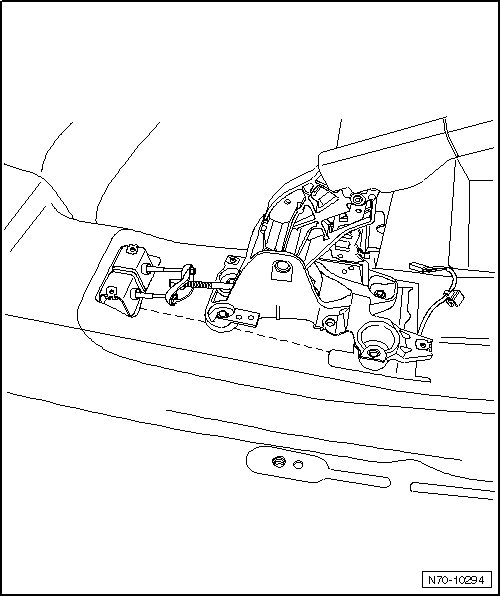

- Cut into floor cover at both - dashed lines - in parking brake console area.

- Remove floor covering from vehicle.





Installation

- To install, perform the steps used for removal in reverse order.
