Rear Wheel Housing Liner Assembly Overview

Rear Wheel Housing Liner Assembly Overview

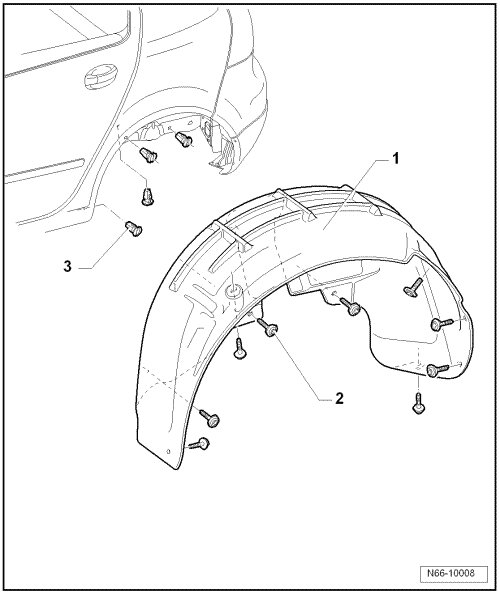

• The illustration shows the left side. It can also be applied to the right side.





1 Wheel housing liner

• Material - PP/EPDM

2 Bolt

• Qty. 9

• 2 Nm

3 Expanding nut

• Qty. 4
