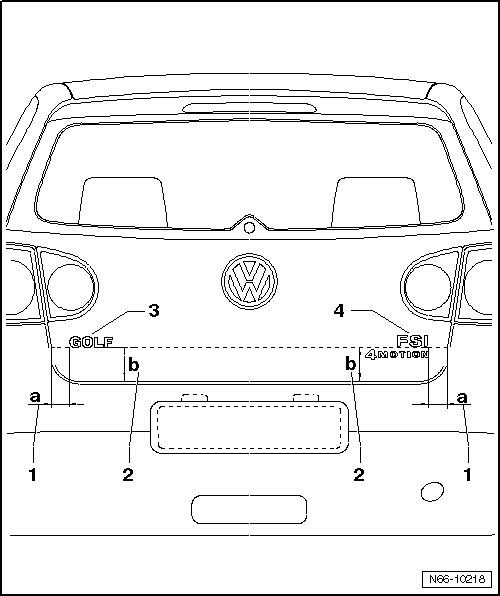

Rear Name Plate Dimensions

Rear Name Plate Dimensions





1 Dimension - a - = 50 mm

• From outer edge of rear lid up to name plate.

2 Dimension - b - = 90 mm

• From lower edge of rear lid to lower edge of name plate.

3 Name plate

• Model designation

4 Name plate

• Engine designation
