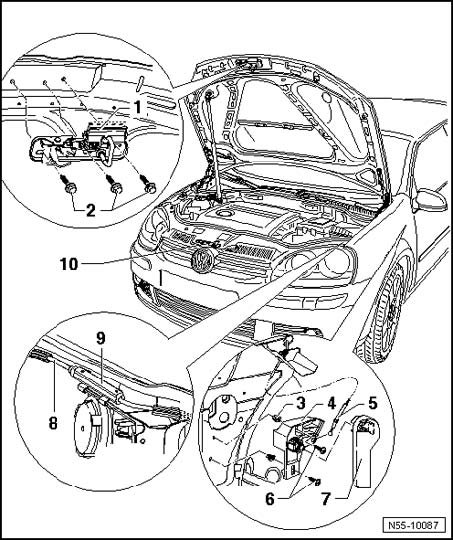

Hood Locking and Unlocking Components Assembly Overview

Hood Locking and Unlocking Components Assembly Overview







1 - Catch
- Removing:
- Remove bolts - 2 - and remove catch.
- Adjusting:
- Catch can be adjusted toward the left or right in its longitudinal holes.

2 - Bolt
- Qty. 3
- 10 Nm


3 - Expanding nut
- Qty. 2

4 - Mounting bracket
5 - Release
- Clipped into mounting bracket.

6 - Bolt
- Qty. 2
- 1.5 Nm

7 - Operating lever
- Removing and Installing
8 - Release
- Clipped in on wheel housing and lock carrier.

9 - Release coupling
- disconnecting

10 - Hood lock
- Removing and Installing Hood Lock
- Adjusting
