Rear Bumper Reinforcement: Service and Repair

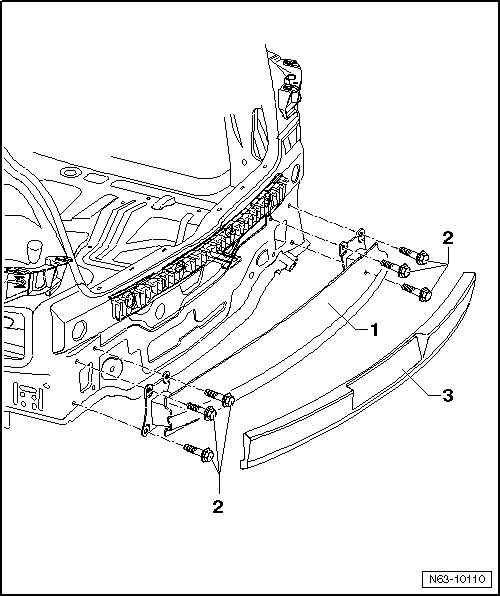

Rear Bumper Carrier Assembly Overview





1 Cross member

2 Bolt

• Qty. 6

• 20 Nm

3 Foam piece

• Only installed in some countries.

• Self-adhesive

• In different formations.
