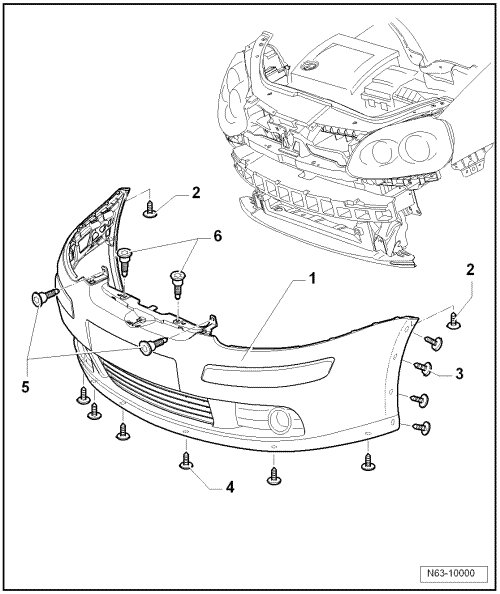

Front Bumper Cover Assembly Overview
Front Bumper Cover Assembly Overview
1 Cover
• Material PP/EPDM
• Removing and Installing => [ Front Bumper Cover ] Front Bumper Cover
2 Bolt
• 1.5 Nm
3 Bolt
• Qty.. 4 per side
• 2 Nm
4 Bolt
• Qty. 6
• 1.5 Nm
5 Bolt
• Qty. 2
• 5 Nm
6 Bolt
• Qty. 2
• 5 Nm
