Front Bumper Bracket: Service and Repair

Front Bumper Bracket

CAUTION!
Observe safety precautions! Refer to

Removing

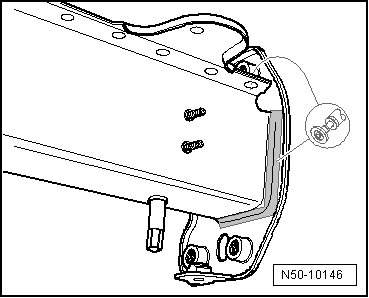

- Separate the original connection.

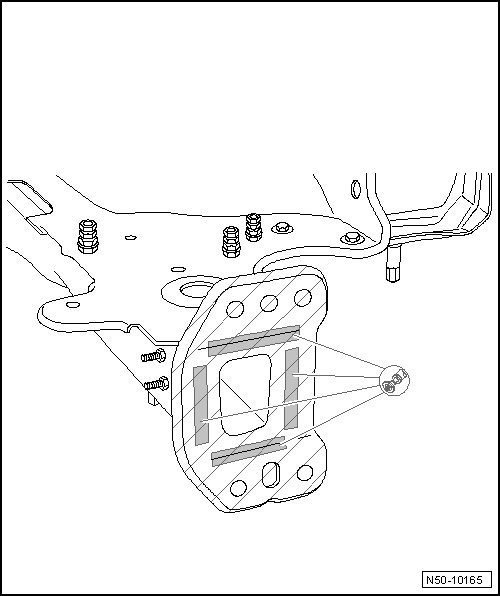

- Separate the original connection.

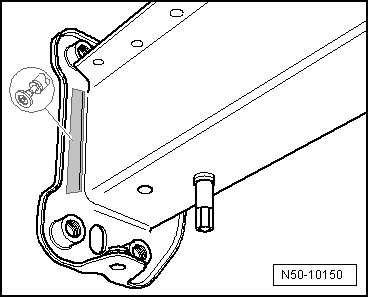

- Separate the original connection.





- Remove residual material.





Installing



Welding

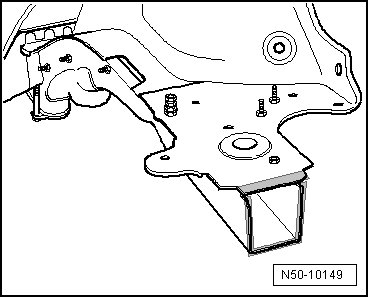

- Fit new part to vehicle standing on alignment bracket set and secure.

- Weld in bumper bracket, gas-shielded arc continuous weld seam.





- Weld in bumper bracket, gas-shielded arc continuous weld seam.
