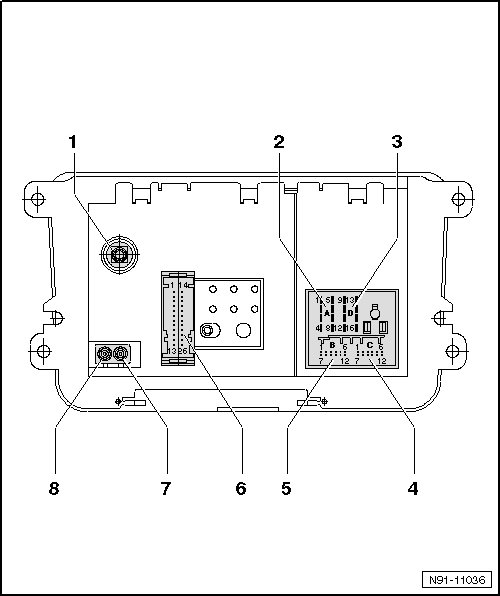

RCD 510 Radio Connection Overview

RCD 510 Radio Connection Overview





1 Antenna Connection

• Input connector for the DAB antenna, optional

or

• Input connector for SDARS antenna (USA and Canada

2 8-Pin Connector A, Speaker Output

• Multi-pin connector assignments, refer to => [ 8-Pin Connector 1, Speaker Output ] RCD 310 Radio Connections, Overview.

3 8-Pin Connector D, Voltage Supply, CAN Bus, Telephone Muting

• Multi-pin connector assignments, refer to => [ 8-Pin Connector 2, Voltage Supply, CAN Bus, Telephone Muting ] RCD 310 Radio Connections, Overview.

4 12-Pin Connector C, AUX Audio Output, Telephone Signal Input

• Multi-pin connector assignments, refer to => [ 12-Pin Connector 3, AUX Audio Output, Telephone Signal Input ] RCD 310 Radio Connections, Overview.

5 12-Pin Connector B, AUX Audio Input, CD Changer Control and CD Audio Input Signals

• Multi-pin connector assignments, refer to => [ 12-Pin Connector 4, AUX Audio Input, CD Changer Control and CD Audio Input Signals ] RCD 310 Radio Connections, Overview.

6 26-Pin Connector 5, Audio and Video

• Multi-pin connector assignments, refer to => [ 26-Pin Connector 5, Audio and Video ].

7 Antenna Connection

• AM/FM antenna input connection

8 Antenna Connection

• FM 2 antenna input connection

8-Pin Connector 1, Speaker Output





1 Right rear speaker, positive
2 Right front speaker, positive
3 Left front speaker, positive
4 Left rear speaker, positive
5 Right rear speaker, negative
6 Right front speaker, negative
7 Left front speaker, negative
8 Left rear speaker, negative

8-Pin Connector 2, Voltage Supply, CAN-Bus, Telephone Muting





9 Can high
10 Can low
11 Supply voltage supply, connected, positive
12 Negative connection, terminal 31
13 CAN bus display, negative
14 CAN bus display, positive
15 Positive connection, terminal 30
16 Antitheft system control signal, SAFE

12-Pin Connector 3, AUX Audio Output, Telephone Signal Input





1 Microphone input, negative
2 AUX output, audio, right positive
3 AUX output, audio, negative
4 Microphone output, negative
5 Telephone LF signal input, left negative
6 Telephone LF signal input, right negative
7 Microphone input, positive
8 AUX output, audio, left positive
9 Microphone output, positive
10 Telephone mute
11 Telephone LF signal input, left positive
12 Telephone LF signal input, right positive

12-Pin Connector 4, AUX Audio Input, CD Changer Control and CD Audio Input Signals





1 AUX input, audio, left positive
2 AUX input, audio, negative
3 CD changer, audio, negative
4 CD changer, voltage supply positive
5 Not used
6 CD changer, data out bus
7 AUX input, audio, right positive
8 CD changer, left port audio, positive
9 CD changer, right port audio, positive
10 CD Changer, control signal
11 CD changer, data in bus
12 CD changer, clock bus

26-Pin Connector 5, Audio and Video





1 Reserved for protocol debug RX
2 Reserved for protocol debug TX
3 Not used
4 Not used
5 Video output LF, right
6 Video signal output, shielding mass
7 Video signal output, synchronization vertical and horizontal
8 Video signal output, green
9 Not used
10 Right video signal input NF
11 Video signal input, shielding mass
12 Video signal input, synchronization vertical and horizontal
13 Video signal input, green
14 Not used
15 Not used
16 Not used
17 Video signal input LF, negative
18 Video signal output, LF, left
19 Video signal output, RGBS, negative
20 Video signal output, blue
21 Video signal output, red
22 Video signal input NF, negative
23 Left video signal input NF
24 Video signals input, RGBS, negative
25 Video signal input, blue
26 Video signal input, red
