Telephone Mount, Rabbit Sedan From 06.06

Telephone

Telephone Mount, Rabbit Sedan from 06.06





Removing

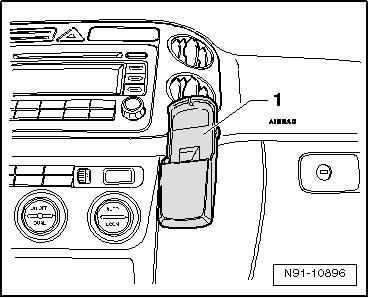

- Rotate retainer clockwise - arrow - and loosen bracket

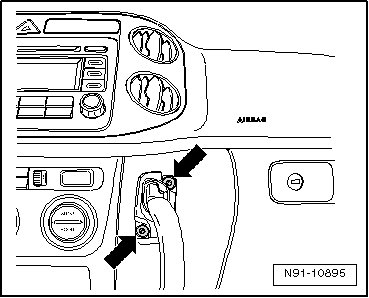

- Loosen both Torx bolts - arrows -.





- Remove wiring harness.

- Disconnect electrical connector.

Installing

Install in reverse order of removal.

• Make sure that wiring harness is connected correctly.

- Connect connector and guide wiring harness back into instrument panel.

- Reattach cell phone bracket mount - arrows -.





- Clip telephone bracket onto mount.
