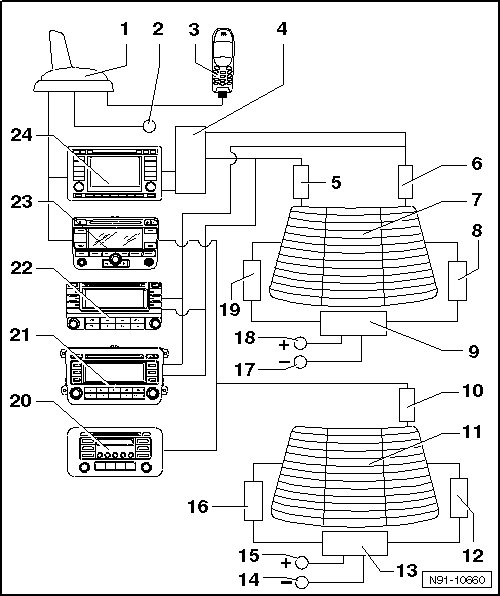

Antenna System Overview, Radios and Radio Navigation Systems with Telephone/Remote Start Auxiliary Heater from 06.05
Antenna System Overview, Radios and Radio Navigation Systems with Telephone/Remote Start Auxiliary Heater from 06.05
1 Antenna (R11)
• Roof antenna for navigation, telephone and auxiliary heater remote ignition
• On rear of roof
• Removing and Installing, refer to => [ Roof Antenna ] Antennas
2 Auxiliary Heater Remote Start Antenna Connection
3 Cellular Telephone (R54) Connection
4 Antenna Selection Control Module (J515)
• Only installed in conjunction with radio/navigation display control module RNS MFD 2 with CD drive
5 Antenna Amplifier (R24)
• For FM reception
• Removing and Installing, refer to => [ Antenna Amplifier in Tailgate, Golf Sedan ] Antennas
• Removing and Installing, refer to => [ Antenna Amplifier in Tailgate, Golf Plus ] Antennas
6 Antenna Amplifier 2 (R111)
• For FM and AM reception
• Removing and Installing, refer to => [ Antenna Amplifier in Tailgate, Golf Sedan ] Antennas
• Removing and Installing, refer to => [ Antenna Amplifier in Tailgate, Golf Plus ] Antennas
7 Rear Window with Two Antenna Connectors
• For FM and AM radio reception
8 FM Frequency Filter (R179)
• Installed in positive wire in wiring harness
• Function is to prevent antenna signals from shorting to ground
9 AM Frequency Filter (R177)
• Installed in rear lid
• Function is to prevent antenna signals from shorting to ground
• Removing and Installing, refer to => [ AM Frequency Filter ] Antennas
10 Antenna Amplifier 2 (R111)
• for FM and AM reception
• removing and installing, refer to => [ Antenna Amplifier in Tailgate, Golf Sedan ] Antennas
• removing and installing, Golf Plus, refer to => [ Antenna Amplifier in Tailgate, Golf Plus ] Antennas
11 Rear Window with One Antenna Connection
• For FM and AM radio reception
12 FM Frequency Filter (R179)
• Installed in positive wire in wiring harness
• Function is to prevent antenna signals from shorting to ground
13 AM Frequency Filter (R177)
• Installed in rear lid
• Function is to prevent antenna signals from shorting to ground
14 Rear Window Defroster Voltage Distribution, Negative
15 Rear Window Defroster Voltage Distribution, Positive
16 FM Frequency Filter (R178)
• Installed in negative wire in wiring harness
• Function is to prevent antenna signals from shorting to ground
17 Rear Window Defroster Voltage Distribution, Negative
18 Rear Window Defroster Voltage Distribution, Positive
19 FM Frequency Filter (R178)
• Installed in negative wire in wiring harness
• Function is to prevent antenna signals from shorting to ground
20 Radio (R)
• R 100 radio
• With only one antenna wire for AM/FM radio reception, without diversity function
21 Radio (R)
• RCD 500 radio
• Two antenna wires for FM/AM. Antenna selection (diversity) in radio unit
22 Radio (R)
• RCD 300 radio
• Two antenna wires for FM/AM. Antenna selection (diversity) in radio unit
23 Radio/Navigation Display Control Module (J503 )
• RNS 300 Radio Navigation System
• With one antenna wire for AM/FM radio reception, without diversity function
• With one antenna wire to roof antenna for navigation
24 Radio/Navigation Display Control Module (J503 )
• RNS MFD 2 radio navigation system with CD drive
• RNS MFD 2 DVD radio navigation system with DVD drive
• RNS 510 Radio Navigation System
