Differential: Tools and Equipment

Special Tools

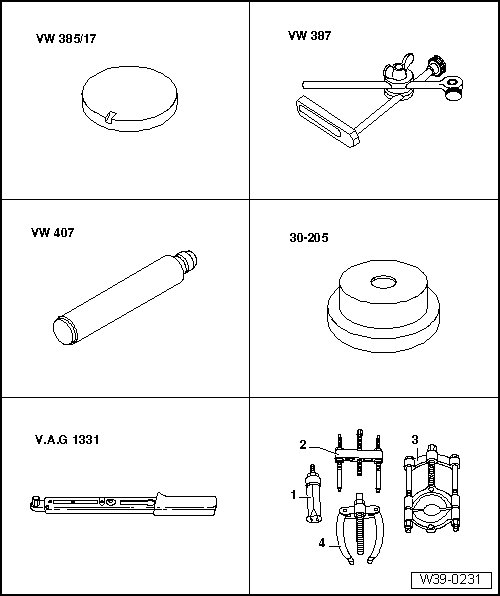

Special tools, testers and auxiliary items required

• Magnetic plate 50 MM dia. (VW 385/17)

• Dial gauge holder (VW 387)

• Punch (VW 407)

• Thrust pad (30 - 205)

• Torque wrench 5 to 50 Nm (V.A.G 1331)

• - 1 - Internal puller (Kukko 21/7 )

• - 4 - Support (Kukko 22/2 )

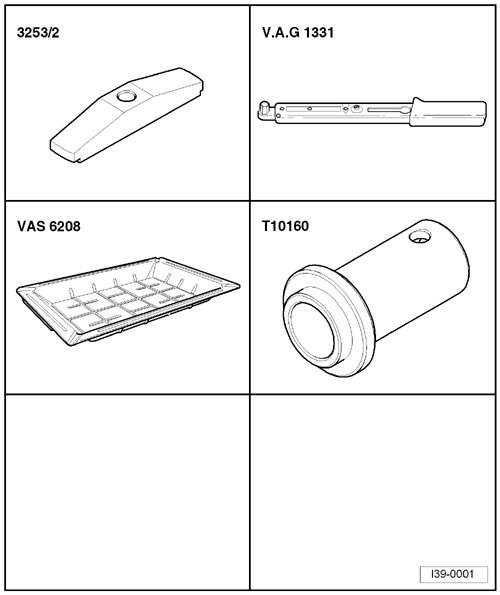

Special tools, testers and auxiliary items required

• Assembly tool (3253/2)

• Torque wrench 5 to 50 Nm (V.A.G 1331)

• Drip tray for shop crane (VAS 6208)

• Thrust piece (T10160)

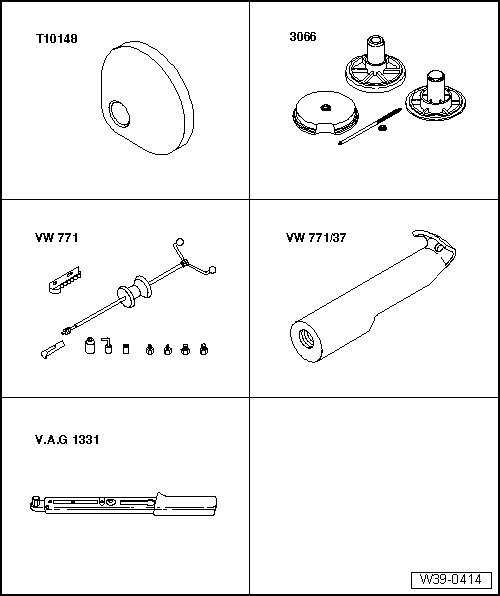

Special tools, testers and auxiliary items required

• Thrust piece (T10148)

• Spindle from seal installer set - rear diff (3066)

• Slide hammer-complete set (VW 771)

• Pulling hook (VW 771/37)

• Torque wrench 5 to 50 Nm (V.A.G 1331)

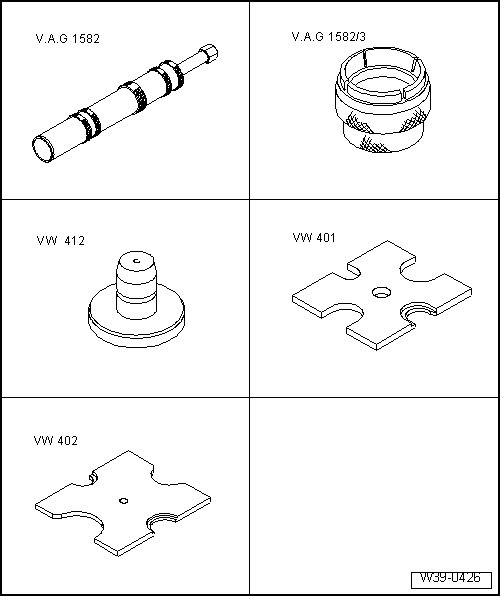

Special tools, testers and auxiliary items required

• Taper roller bearing puller (V.A.G 1582)

• Attachment (V.A.G 1582/3)

• Thrust Disc (VW 412)

• Thrust plate (VW 401)

• Thrust plate (VW 402)

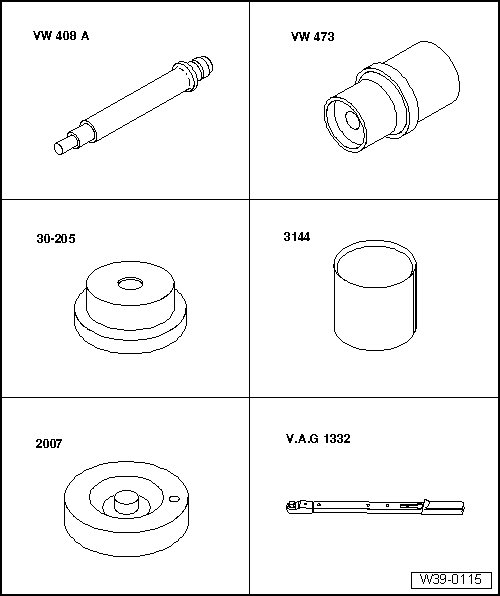

Special tools, testers and auxiliary items required

• Punch (VW 408 A)

• Thrust piece (VW 473)

• Thrust pad (30 - 205)

• Press support-R&I wheel brg's. (3144)

• Thrust pad (2007)

• Torque wrench 40 to 200 Nm (V.A.G 1332)

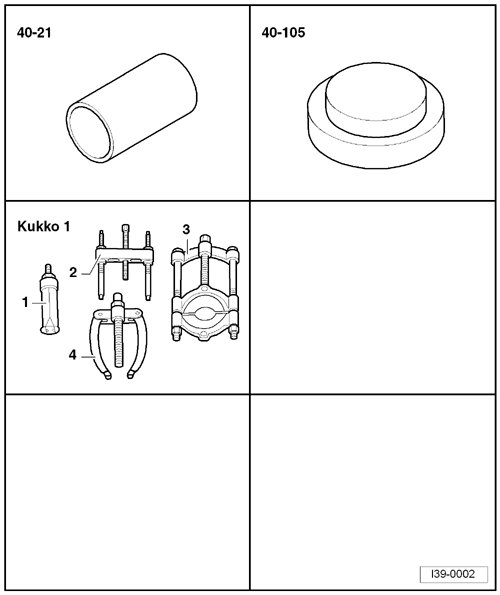

Special tools, testers and auxiliary items required

• Seal driver-frt wheel bearing (40 - 21)

• Thrust piece (40 - 105)

• - 1 - Internal extractor (Kukko 21/7 )

• - 4 - Support (Kukko 22/2 )
