Valve Body: Application and ID

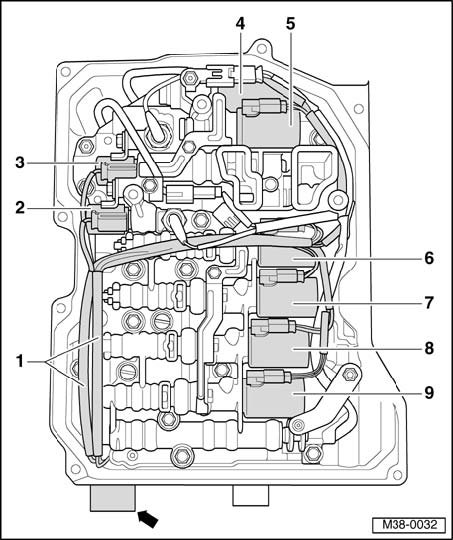

Solenoid Valve Identification, 09G, 6 Speed A/T





1 - Wiring harness with 14-pin connector - arrow - for solenoid valves
2 - Solenoid Valve 1 N88
3 - Solenoid Valve 2 N89
4 - Solenoid Valve 4 N91
5 - Solenoid Valve 6 N93
6 - Solenoid Valve 5 N92
7 - Automatic Transmission Pressure Regulating Valve 4 N218
8 - Automatic Transmission Pressure Regulating Valve 6 N371
9 - Automatic Transmission Pressure Regulating Valve 5 N233
