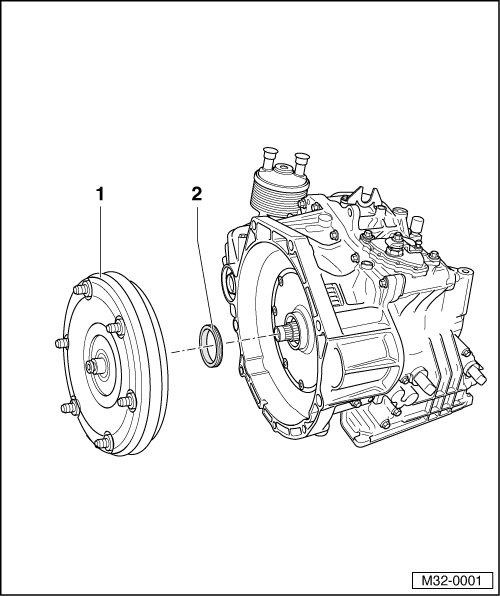

Torque Converter Assembly Overview

Torque Converter Assembly Overview





1 Torque converter

• Secure torque converter on removed transmission to keep it from falling out => [ Transmission, Transporting ] Transmission, Transporting

• Installing => [ Torque Converter, Installing ] Torque Converter, Installing

• Installation dimension => [ Torque Converter Installation Dimension, Checking ] Torque Converter Installation Dimension, Checking

2 Oil seal

• Replace => [ Torque Converter Oil Seal ] Torque Converter Oil Seal
