Home >> Volkswagen >> 2008 >> New Beetle Convertible (1Y7) L5-2.5L (BPS) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures >> 09G, 6 Speed A/T OBD >> Test Table

Test Table

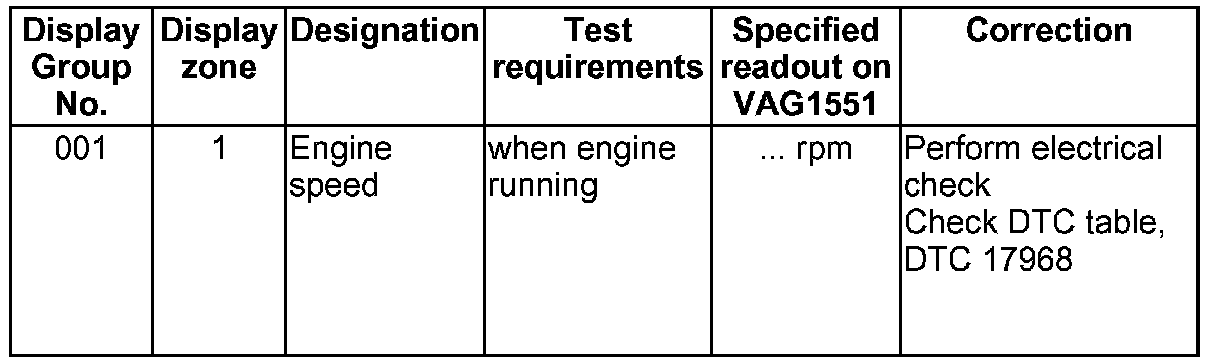

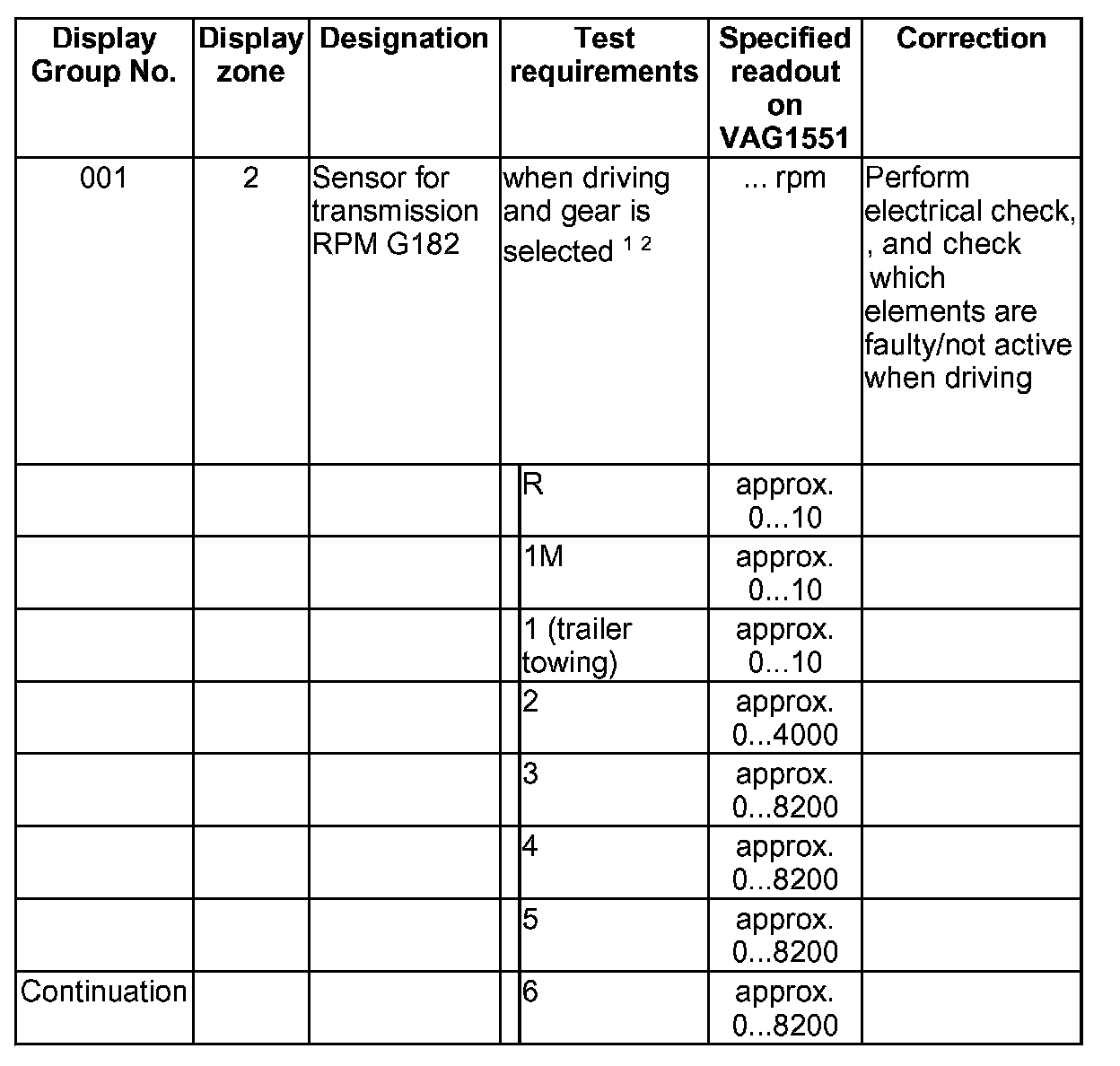

Test Table, 09G, 6 Speed A/T OBD
