Measured Value Block, Reading

Measured Value Block, Reading, 09G, 6 Speed A/T OBD

Supplementary Information
^ Refer to Electrical Wiring Diagrams, Troubleshooting Component Locations for supplementary information.

Work Sequence
- Connect tester VAS5051 and select functions => Diagnosis, Testing and Information System VAS5051, Connecting and Selecting Function.

The following description refers to VAG1551
Indicated on display

Rapid data transfer HELP
Select function XX

- Press keys 0 and 8 (08 selects function "Read measured value block").

Indicated on display

Rapid data transfer Q
08 - Read measured value block

- Confirm entry with Q key.
Indicated on display

Read measured value (data) block
Input display group number XXX

- Enter display group number from List of selectable display group numbers.
- Confirm entry with Q key.

There are always 4 display zones in the measured value block (arrows) (if necessary in physical quantities). To decode the individual values in display zones 1 to 4 Test table.

Read measured value block 1 arrowright
arrowright 1 arrowright 2 arrowright 3 arrowright 4

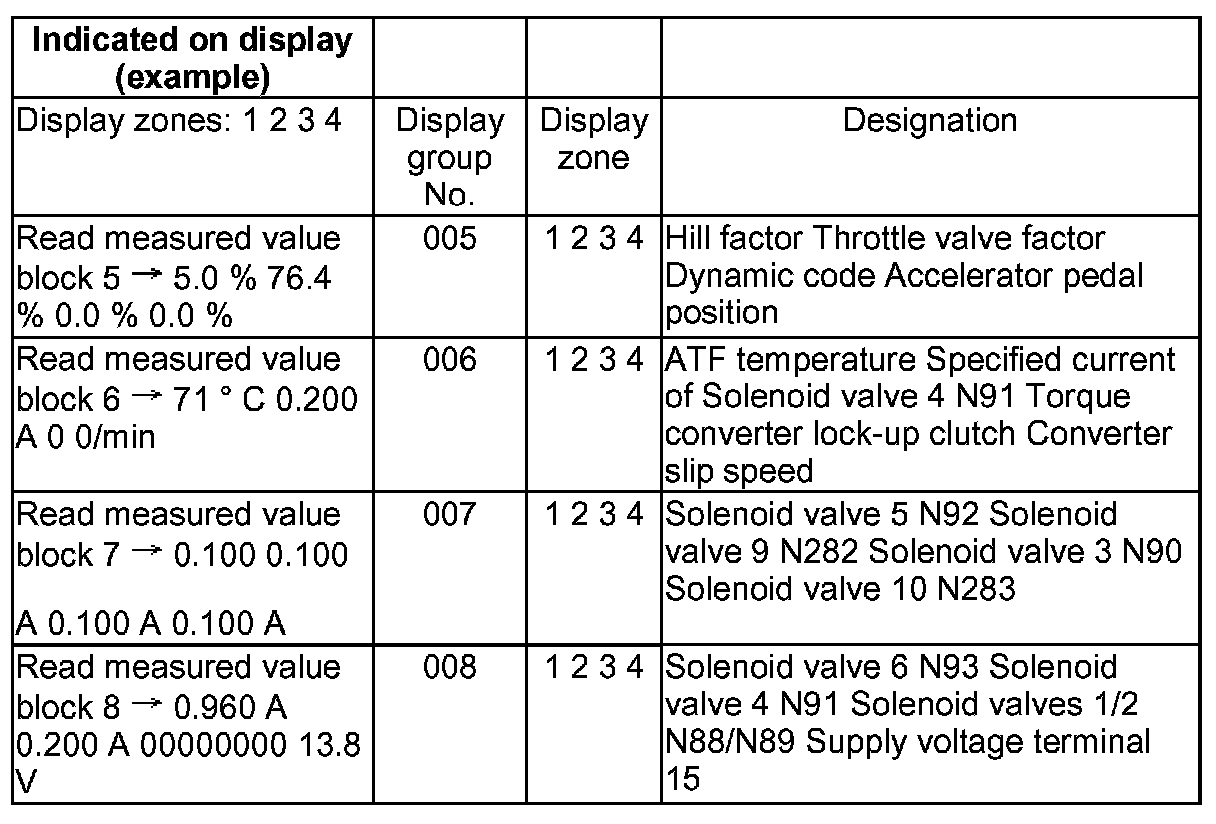

List of selectable display group numbers








Note:
^ When the printer is switched on the actual display is printed out on a voucher.
^ If the specified values are reached in all the display fields:

- Press key arrow right.

Indicated on display:

Rapid data transfer HELP
Select function XX
