09G, 6 Speed A/T

Fluid pan, 09G, 6 Speed A/T

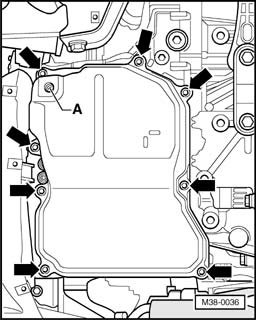

Tighten oil pan bolts - arrows - in diagonal sequence and in stages 7 Nm

Flex Plate, 6 Speed A/T





Install 6 new nuts - arrow - for mounting torque converter to drive plate using socket wrench insert V/ 175.





Self-locking nut for cover at selector mechanism housing 10 Nm
Bolt for locking cable on selector mechanism 10 Nm
