Selector Mechanism Cover Assembly Overview

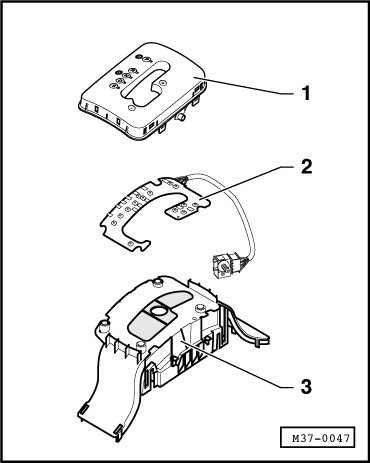

Selector Mechanism Cover Assembly Overview

1 - Cover





• With symbol insert

• Can only be replaced as complete unit

2 - Circuit board

3 - Frame

• With cover strips
